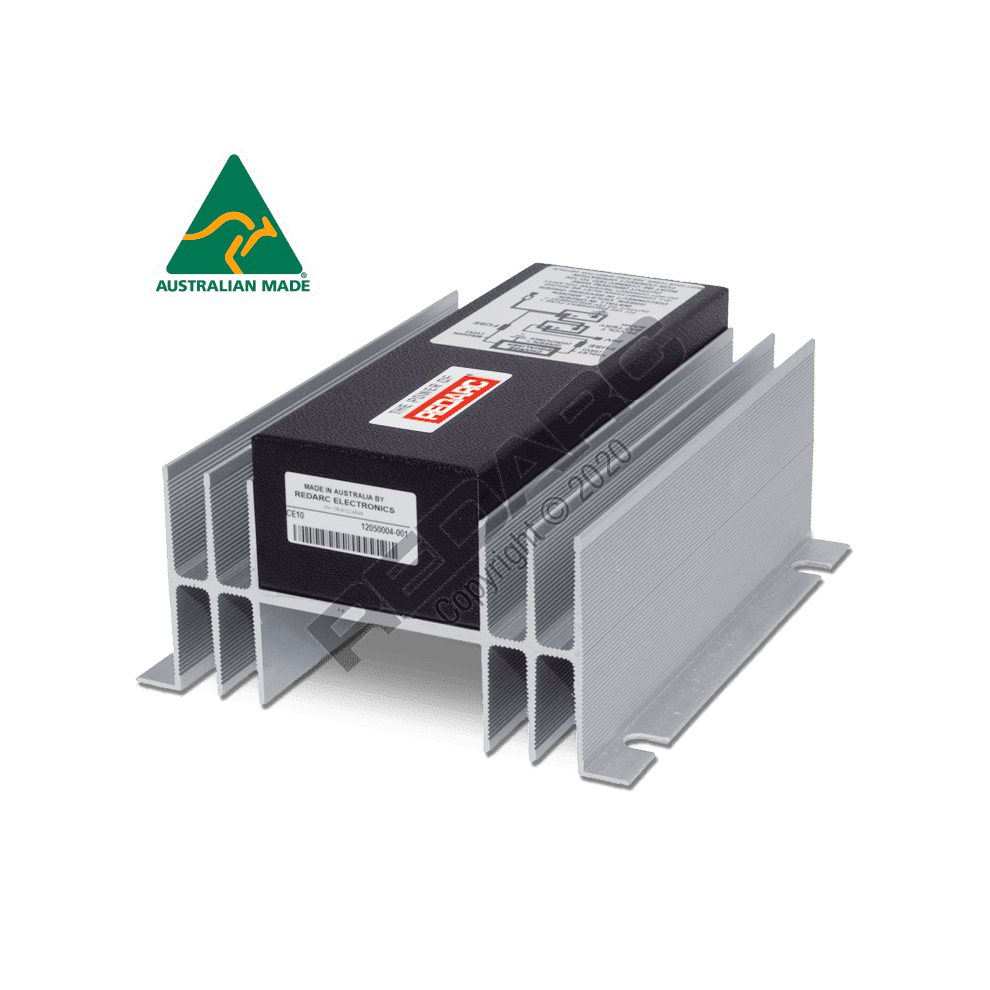

REDARC 10A Charge Equaliser

SKU: N1-CE10


The REDARC 10A Charge Equaliser is designed to manage a high current 12 volt supply in a 24 volt vehicle. It allows 12 volts to be ‘tapped’ from the centre of a series-connected, two battery, 24 volt DC electrical system while still ensuring an equal charge across the two batteries.

Charge Equalisers are often used when lack of space or cost prohibits the installation of a separate 12 volt battery.

The REDARC Charge Equaliser has a high peak current capability and fast transient response suited for loads requiring a safe, clean and stable 12 volt supply.

It has the advantage of drawing power from a battery rather than through a current limited device, like a voltage reducer. This allows for a much larger peak current draw.



  • Designed to keep your 24 volt batteries equally charged
  • Cost effective product for supplying 12 volts to any type of load
  • Peak load currents available are limited only by the battery



  • High peak current capability
  • Fast transient response
  • Fully encapsulated


Input (Operating) Voltage 19 - 33VDC
Output Current Rating (Cont.) 10A
Input Fuse Rating 15A
Output Fuse Rating 15A
Warranty 2 Years
Output System Voltage 12VDC
Length (mm) 156
Width (mm) 135
Height (mm) 75
Weight (kg) 0.8
