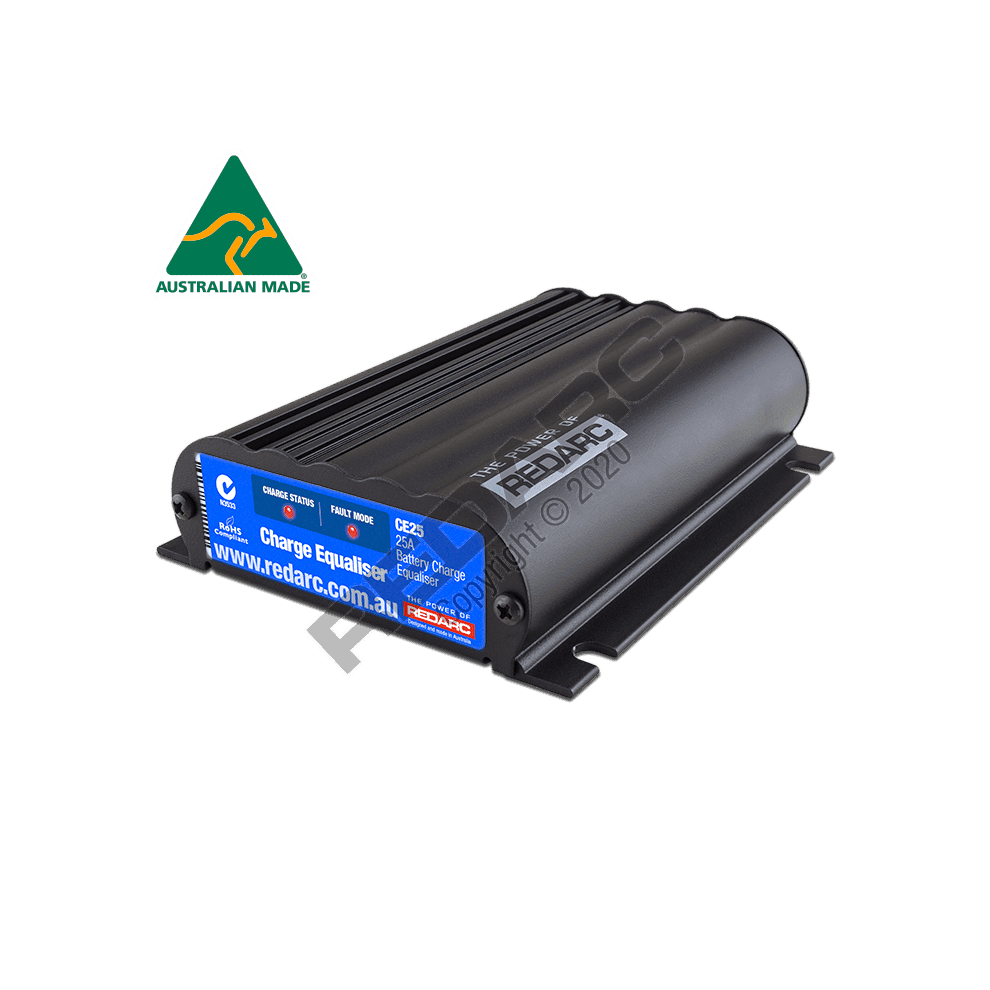

REDARC 25A Charge Equaliser

REDARC 25A Charge Equaliser


Regular price $783.00
Regular price Sale price $783.00
Sale Sold out
Tax included. Shipping calculated at checkout.

The REDARC 25A Charge Equaliser allows 12 volts to be ‘tapped’ from the centre of a series-connected, two battery, 24 volt DC electrical system while still ensuring an equal charge across the two batteries.

This is particularly useful when space or cost prohibits the installation of a separate 12 volt battery.

REDARC have incorporated technology from the award-winning BCDC range into the new style CE25. The CE25 has a maximum 25A output and offers improved functionality, reduced installation complexity and features input isolation, negating the need for an input relay or isolator.

The REDARC Charge Equaliser has a high peak current capability and fast transient response suited for loads requiring a safe, clean and stable 12 volt supply.

It has the advantage of drawing power from a battery rather than through a current limited device, like a voltage reducer. This allows for a much larger peak current draw.



  • Designed to keep your 24-volt batteries equally charged
  • Reduce downtime and running costs by extending battery life
  • Peak load currents are limited only by the battery
  • Designed for New Zealand's unique Conditions



  • Based on the award-winning BCDC Platform
  • High peak current capability
  • Fast transient response
  • Sealed and suited for commercial applications



Input (Operating) Voltage 20 - 32VDC
Output Current Rating (Cont.) 25A
Input Fuse Rating 40A
Output Fuse Rating 40A
Warranty 2 Years
Standby Current Draw <100mA
Output System Voltage 6 - 16VDC
Length (mm) 150
Width (mm) 120
Height (mm) 37
Weight (kg) 0.68
Type Approval E and CE

⚠️ Important Information: You are responsible for LVV compliance of purchased products and their installation, if applicable. Images are for illustration only, actual product may vary. Please contact us with any questions.
