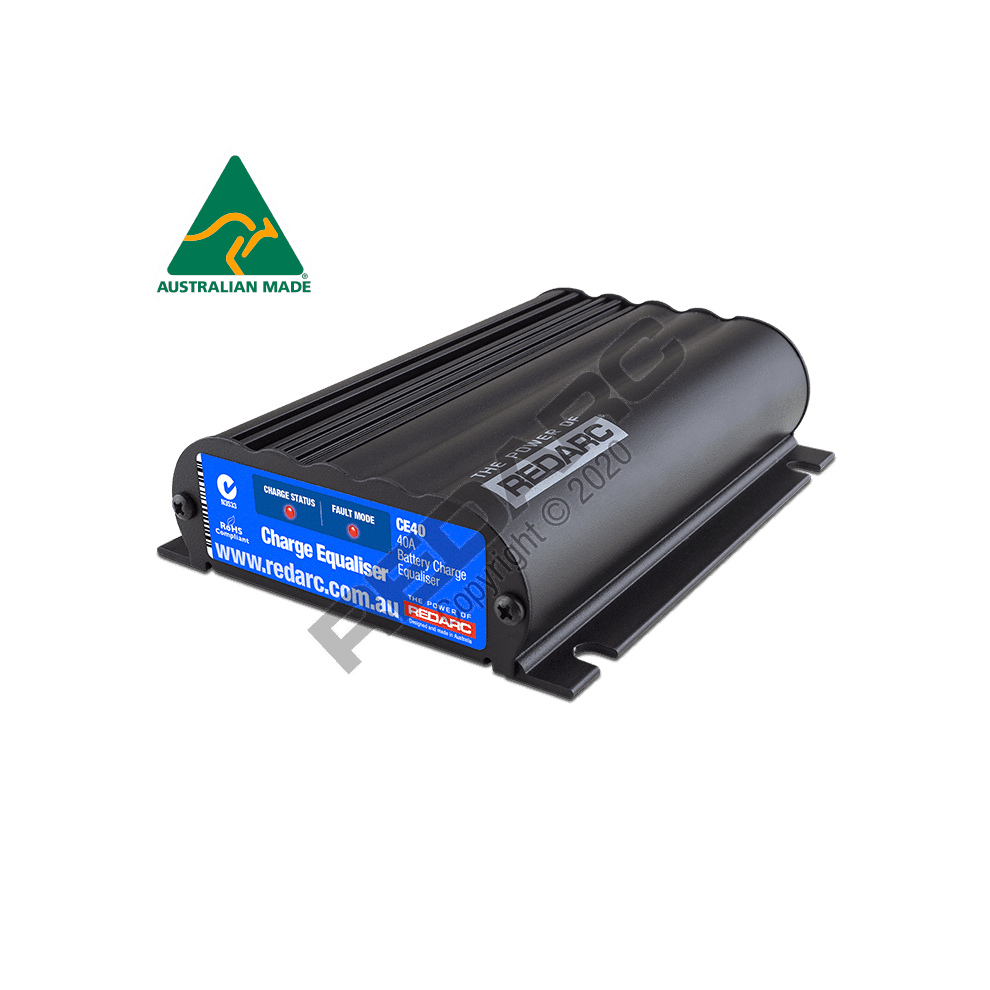

REDARC 40A Charge Equaliser

The REDARC 40A Charge Equaliser allows 12 volts to be ‘tapped’ from the centre of a series-connected, two battery, 24 volt DC electrical system while still ensuring an equal charge across the two batteries.

This is particularly useful when space or cost prohibits the installation of a separate 12 volt battery.

REDARC have incorporated technology from the award-winning BCDC range into the new style CE40S2. The CE40S2 has a maximum 40A output and offers improved functionality, reduced installation complexity and features input isolation, negating the need for an input relay or isolator.

The REDARC Charge Equaliser has a high peak current capability and fast transient response suited for loads requiring a safe, clean and stable 12 volt supply.

It has the advantage of drawing power from a battery rather than through a current limited device, like a voltage reducer. This allows for a much larger peak current draw.

Benefits

• Designed to keep your 24 volt batteries equally charged
• Reduce down time and running costs by extending battery life
• Peak load currents are limited only by the battery
• Designed for New Zealand's unique conditions

Features

• Based on the award winning BCDC Platform

• High peak current capability

• Fast transient response

• Sealed and suited for commercial applications

Specifications:
