REDARC Electric Trailer Brake Controller
REDARC Electric Trailer Brake Controller
The Tow-Pro range of Electric Brake Controllers sets the benchmark for easy-to-use, safe braking on trailers and boat trailers. Now there’s a REDARC Tow-Pro to suit every towing need and budget!

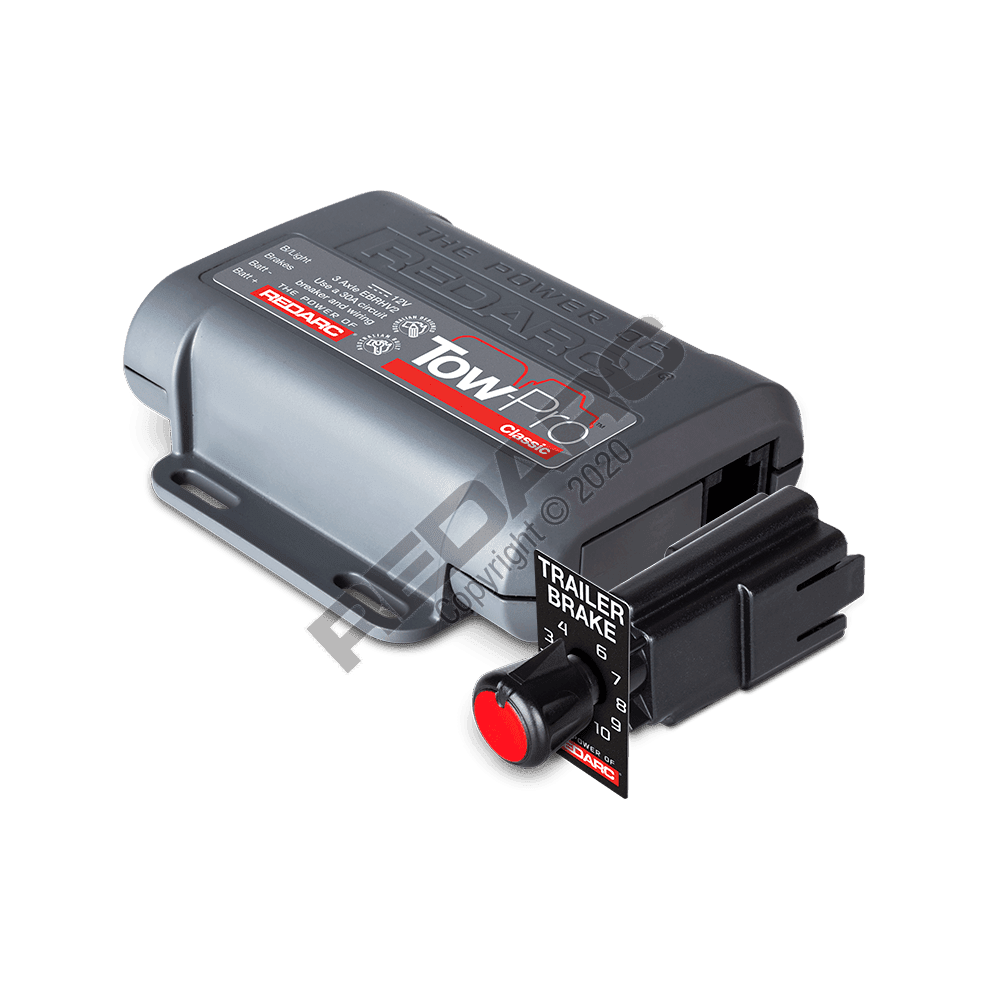

The Tow-Pro Classic Electric Brake Controller is the next generation Electric Brake Remote Head (EBRH), now with the extra performance and reliability of the Tow-Pro platform. It incorporates quality and performance improvements whilst retaining the EBRH look and feel.
Suitable for 12 volt systems, Tow-Pro Classic Electric Brake Controller is simple to install and operate and offers a single (user controlled) mode of braking at the turn of a dial with braking force LED indication.
The Tow-Pro Classic brake controller is able to operate both electric and electric/hydraulic trailer brakes without manual selection and is AL-KO ESC and Dexter Sway Control System compliant.
User-Controlled Mode
Tow-Pro Classic offers user-controlled mode of braking allowing the driver complete control of the brake level whether the footbrake or override is applied. The trailer will behave exactly as expected whenever the vehicle brakes are applied and works independently of the vehicle’s brakes.
Adjusting the control knob in user-controlled mode will adjust the braking force from minimal (0) to maximum (10).
Benefits
- Smooth trailer braking response
- User controlled-mode braking
- AL-KO ESC and Dexter Sway Control System compliant
- Electric/hydraulic operation
Features
- Suitable for 12 volt vehicle systems
- Compact size
Specifications:
Input (Operating) Voltage | 9 - 16VDC |
Input Fuse Rating | 30A (Circuit Breaker) |
Standby Current Draw | <10mA |
Output System Voltage | 12VDC |
Output Current Rating (Cont.) | 25A |
Length (mm) | 85 |
Width (mm) | 100 |
Height (mm) | 30 |
Weight (kg) | 0.2 |
Warranty | 2 Years |
⚠️ Important Information: You are responsible for LVV compliance of purchased products and their installation, if applicable. Images are for illustration only, actual product may vary. Please contact us with any questions.
