Redarc

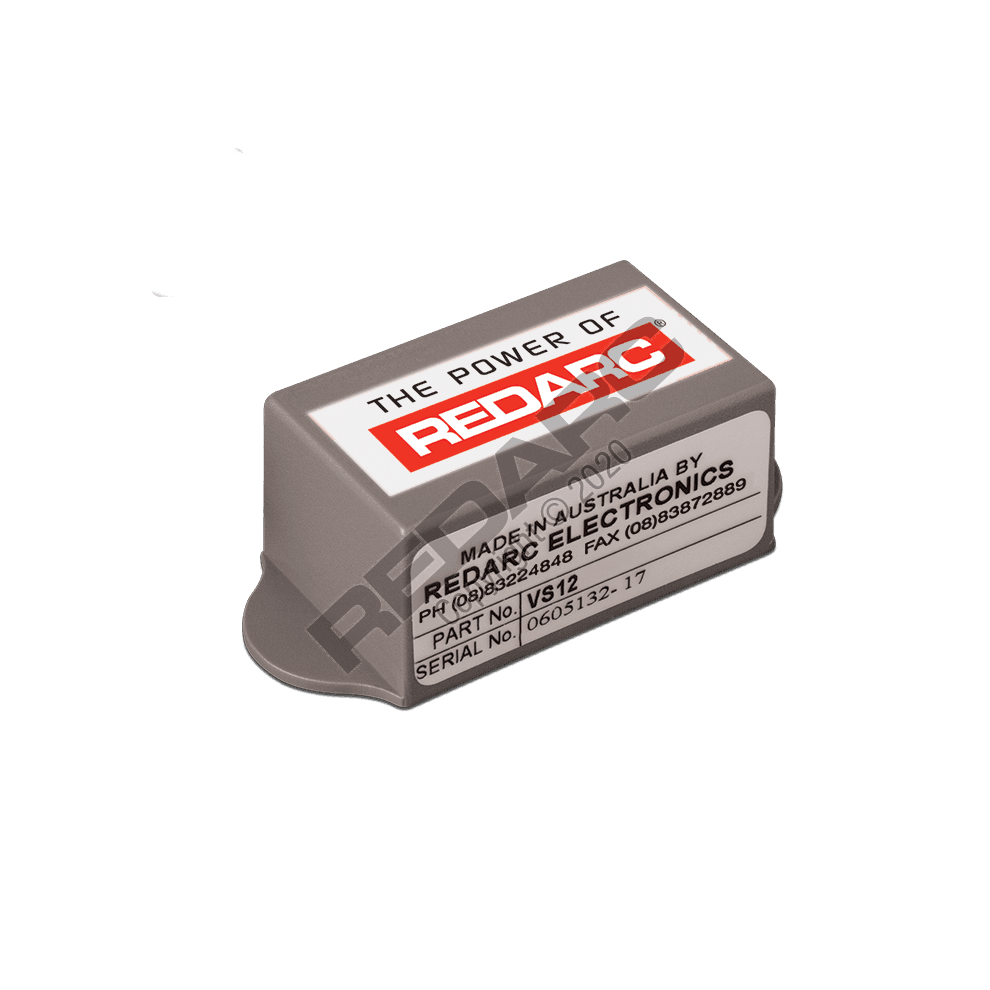

REDARC Voltage Sensitivity Relay 12V 10A

REDARC Voltage Sensitivity Relay 12V 10A

SKU:N1-VS12

Regular price $173.00
Regular price Sale price $173.00
Sale Sold out
Tax included. Shipping calculated at checkout.

REDARC voltage sensitive relay modules provide a cost effective control system for 12 volt and 24 volt applications. They are suitable for mobile or stationary installations and feature user customisable voltage level settings.

REDARC voltage sensors are perfect for use as a low voltage disconnect for loads such as car fridges or could also be used as a low voltage alarm trigger or controller.
Voltage sensors can be customised to suit any required application at time of manufacture as they feature a programmable microprocessor which can be set to switch at any required voltage, current, frequency or count.

Features

  • Easily-adjustable trigger voltage level setting
  • Operates like a standard changeover relay
  • Easily customisable to user’s specifications

Benefits

  • Prevents over discharge of your battery
  • Prevents surges from damaging sensitive equipment
  • Easy to set up and install
  • Perfect for low or high voltage cut-off applications

Specifications:

Input (Operating) Voltage 12VDC
Warranty 2 Years
Sensor Range 9 - 16V
Output Current Rating (Cont.) 10A
Length (mm) 75
Width (mm) 30
Height (mm) 24
Weight (kg) 0.07

⚠️ Important Information: You are responsible for LVV compliance of purchased products and their installation, if applicable. Images are for illustration only, actual product may vary. Please contact us with any questions.
