Runva

Runva 11XS Premium 12V with Synthetic Rope

Runva 11XS Premium 12V with Synthetic Rope

SKU:M1-11XS12VD

Regular price $1,000.00
Regular price Sale price $1,000.00
Sale Sold out
Tax included. Shipping calculated at checkout.

The Runva 11XS Premium is the winch that ticks all the boxes if you want massive line pull capacity, but limited on space. Featuring a massive 11,000lb of line pull from the powerful and reliable 6.7HP motor. The gearbox is a three stage planetary setup with tough 228:1 gear ratio to handle even the toughest jobs. The winch is ideal for boat trailers, tippers, car trailers, chippers, 4X4 use and MUCH more.

This model has all of our Premium features built in. Feel confident in the most extreme conditions with full IP67 ingress protection. The brake is our most advanced Ratchet system which is located in the gearbox which is super efficient and able to hold without fail when you stop winching. (Same brake as featured in our vertical lifting winch). Unlike the other traditional brake systems which uses brake pads, this will not wear out.

The clutch is easily engaged/disengaged via the Rotary Clutch system. The 11XS Premium is also fully compatible with our optional extra Runva Air Clutch.

This winch is the compact version of our best selling 11XP Premium. This compact model will not fit a standard 4X4 Winch Bar/Bullbar. Please select the 11XP Premium for 4X4 Winch Bar/Bullbar fitment instead.

RATED LINE PULL 11,000LB (4,990KG)
MOTOR (12V) 5.0KW/6.7HP; (24V) 6.0KW/8.2HP
GEAR TRAIN FULL STEEL 3 STAGE PLANETARY
GEAR RATIO 228:1
CLUTCH TYPE STAINLESS STEEL ROTARY CLUTCH
CLUTCH HANDLE POSITION GEARBOX CAN BE ROTATED
BRAKE AUTOMATIC RATCHET LOAD HOLDING IN GEARBOX
CABLE TYPE SYNTHETIC ROPE
CABLE SIZE 10MM X 15M

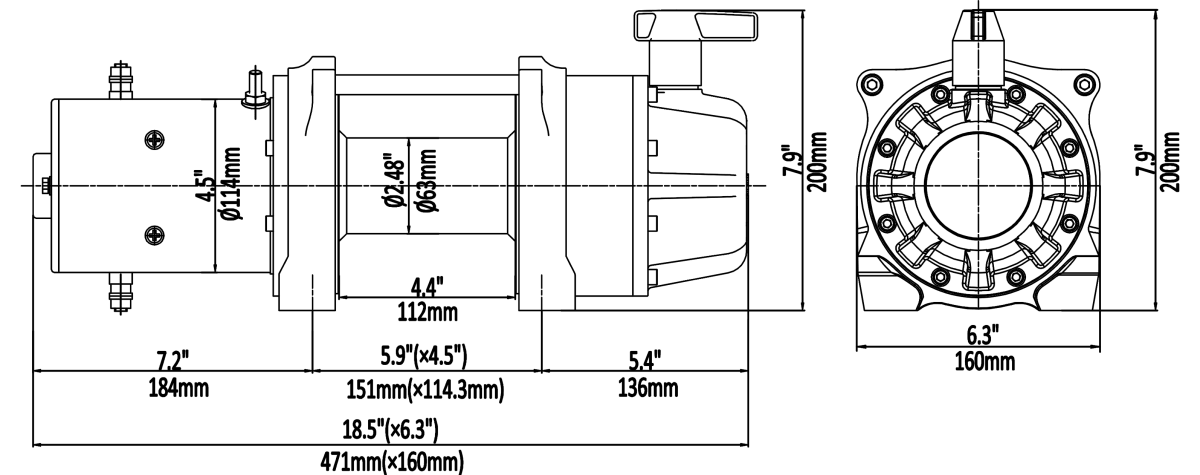

DRUM SIZE 63MM X 112MM
MOUNTING BOLT PATTERN 151MM X 114.3MM
OVERALL DIMENSIONS 471MM X 160MM X 200MM
REMOTE CONTROL HEAVY DUTY HANDHELD + WIRELESS
BATTERY LEADS 2X 1.8M HEAVY DUTY LEADS
FINISH BLACK POWDER COAT
WARRANTY LIMITED 5 YEAR ELECTRICAL AND LIFETIME MECHANICAL WARRANTY
SKU 11XS12VD
SHIPPING WEIGHT 30.00KG
SHIPPING WIDTH 0.330M
SHIPPING HEIGHT 0.330M
SHIPPING LENGTH 0.635M

⚠️ Important Information: You are responsible for LVV compliance of purchased products and their installation, if applicable. Images are for illustration only, actual product may vary. Please contact us with any questions.
