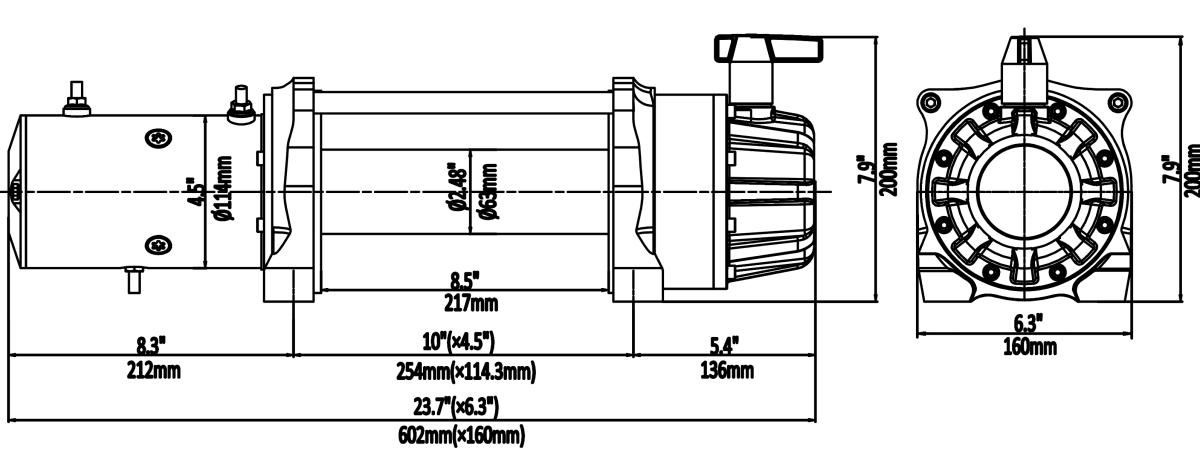

The Runva 13XP Premium is a very popular option, and is perfect for large heavy vehicles. Featuring a massive 13,000lb of line pull from the powerful and reliable 7.6HP motor. The gearbox is a three stage planetary setup with tough 228:1 gear ratio to handle the heaviest of recoveries. This model is the ideal choice for loaded up Landcruiser 79 Series all the way through to the American Dodge Ram, Tundra, F150 or anything else that requires some serious winch power. (The Runva 13XP Premium is also compatible with a variety of other vehicles. This winch is quite large so check out our technical drawing below to ensure fitment on your application)
This model has all of our Premium features built in. Feel confident in the most extreme conditions with full IP67 ingress protection. The brake is our most advanced Ratchet system which is located in the gearbox which is super efficient and able to hold without fail when you stop winching. (Same brake as featured in our vertical lifting winch). Unlike the other traditional brake systems which uses brake pads, this will not wear out.
The clutch is easily engaged/disengaged via the Rotary Clutch system. The 13XP Premium is also fully compatible with our optional extra Runva Air Clutch for easy in-cab control.
This model has all of our Premium features built in. Feel confident in the most extreme conditions with full IP67 ingress protection. The brake is our most advanced Ratchet system which is located in the gearbox which is super efficient and able to hold without fail when you stop winching. (Same brake as featured in our vertical lifting winch). Unlike the other traditional brake systems which uses brake pads, this will not wear out.
The clutch is easily engaged/disengaged via the Rotary Clutch system. The 13XP Premium is also fully compatible with our optional extra Runva Air Clutch for easy in-cab control.
Features
- 13,000LB LINE PULL CAPACITY
- IP67 INGRESS PROTECTED
- RATCHET BRAKE IN GEARBOX
- AVAILABLE IN 12V AND 24V
- SYNTHETIC ROPE OPTION AVAILABLE
- AIR FREESPOOL CLUTCH AVAILABLE
- HEAVY DUTY - SUITABLE FOR COMMERCIAL APPLICATIONS
What's in the box
- Runva 13XP Winch
- Winch control box
- Wired and wireless remote
- Isolator switch
- Winch control box mounting brackets
- Roller fairlead
- Hook
- Pulley snatch block
- Battery leads
- Bow shackle
- Stubby coolers
Specifications
RATED LINE PULL 13,000LB (5,897KG)
MOTOR (12V) 5.6KW/7.6HP; (24V) 6.5KW/8.8HP
GEAR TRAIN FULL STEEL 3 STAGE PLANETARY
GEAR RATIO 228:1
CLUTCH TYPE STAINLESS STEEL ROTARY CLUTCH
CLUTCH HANDLE POSITION GEARBOX CAN BE ROTATED
BRAKE AUTOMATIC RATCHET LOAD HOLDING IN GEARBOX
CABLE TYPE SYNTHETIC ROPE
CABLE SIZE 11MM X 25M (25,250LB RATING)
DRUM SIZE 63MM X 217MM
MOUNTING BOLT PATTERN 254MM X 114.3MM
OVERALL DIMENSIONS 602MM X 160MM X 200MM
REMOTE CONTROL HEAVY DUTY HANDHELD + WIRELESS
BATTERY LEADS 2X 1.8M HEAVY DUTY LEADS
FINISH BLACK POWDER COAT
WARRANTY LIMITED 5 YEAR ELECTRICAL AND LIFETIME MECHANICAL WARRANTY
SKU 13XPPREMIUM12VD
SHIPPING WEIGHT 41.00KG
SHIPPING WIDTH 0.330M
SHIPPING HEIGHT 0.330M
SHIPPING LENGTH 0.635M
Performance
| LINE PULL LB (KG) | LINE SPEED FT/MIN (M/MIN) | MOTOR CURRENT (AMP) | LAYER OF CABLE | RATED LINE PULL LB (KG) | TOTAL ROPE ON DRUM FT (M) | ||
|---|---|---|---|---|---|---|---|
| 12V DC | 24V DC | 12V DC | 24V DC | ||||
| 0 (0) | 32.8 (10.0) | 35.1 (10.7) | 75 | 60 | 1 | 13,000 (5,897) | 16.1 (4.9) |
| 4,000 (1,814) | 13.8 (4.2) | 14.7 (4.5) | 200 | 120 | 2 | 10,204 (4,628) | 36.4 (11.1) |
| 8,000 (3,629) | 10.5 (3.2) | 11.5 (3.5) | 320 | 190 | 3 | 8,398 (3,809) | 60.0 (18.3) |
| 13,000 (5,897) | 4.6 (1.4) | 5.9 (1.8) | 470 | 280 | 4 | 7,135 (3,236) | 83.7 (25.5) |
(THE MAXIMUM LINE PULL CAPACITY IS BASED ON THE FIRST LAYER OF CABLE/ROPE)
⚠️ Important Information: You are responsible for LVV compliance of purchased products and their installation, if applicable. Images are for illustration only, actual product may vary. Please contact us with any questions.
