Runva EWB20000 Premium with Synthetic Rope
Runva EWB20000 Premium with Synthetic Rope
SKU:M1-EWB2000012VD
Couldn't load pickup availability
The Runva EWB20000 Premium is our extreme duty 20,000lb recovery winch. Designed for recreational and commercial applications. The gearbox is a three stage planetary setup with super tough 370:1 gear ratio to handle even the toughest recoveries. With a fast no load line speed of 8.5M/Min*, this winch will get the job done in no time.
This model has all of our Premium features built in. Feel confident in the most extreme conditions with full IP67 ingress protection. The brake is our most advanced Ratchet system which is located in the gearbox which is super efficient and able to hold without fail when you stop winching. (Same brake as featured in our vertical lifting winch). Unlike the other traditional brake systems which uses brake pads, this will not wear out.
The clutch is easily engaged/disengaged via the Rotary Clutch system. The EWB20000 Premium is also fully compatible with our optional extra Runva Air Clutch for easy in-cab control. An optional extra cable tensioner can also be supplied for commercial applications.

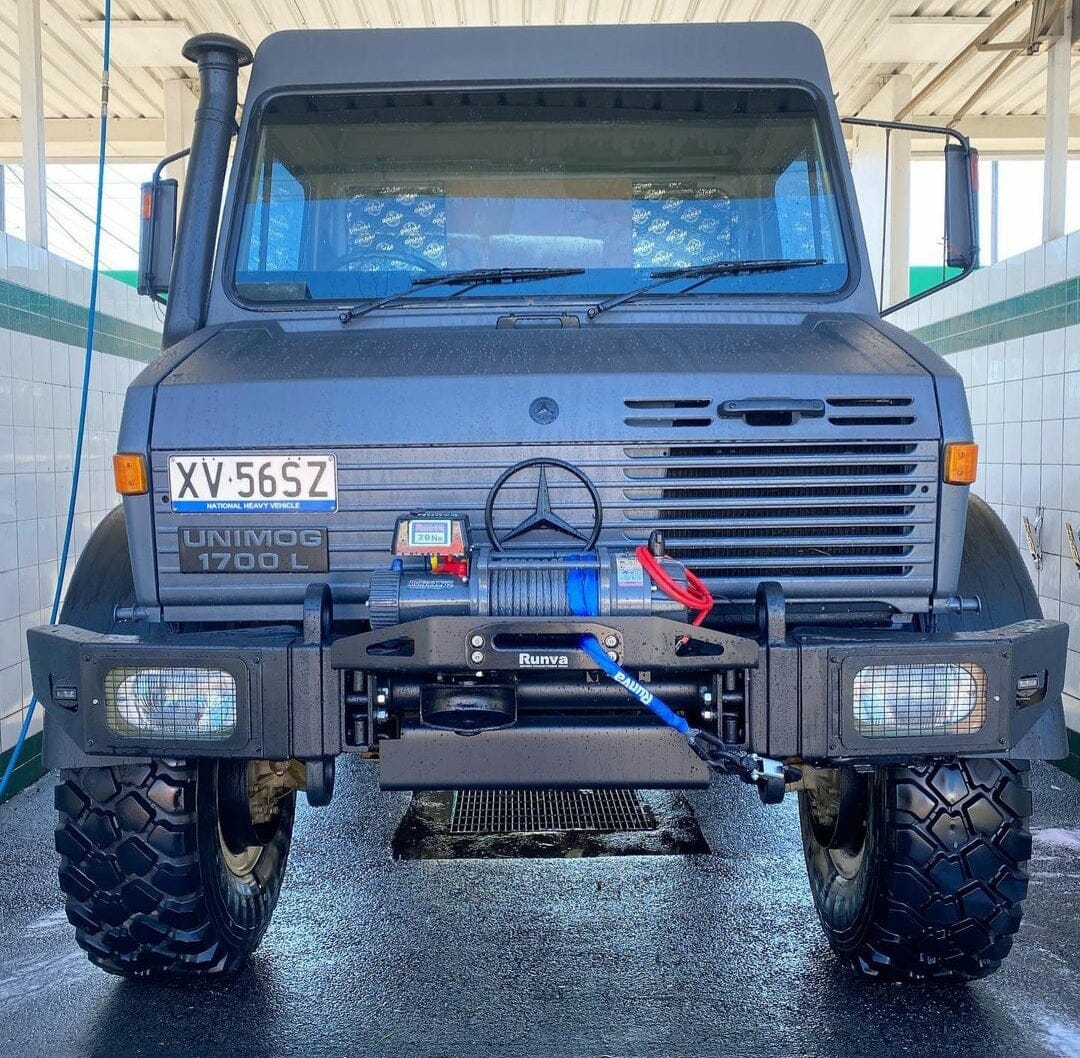

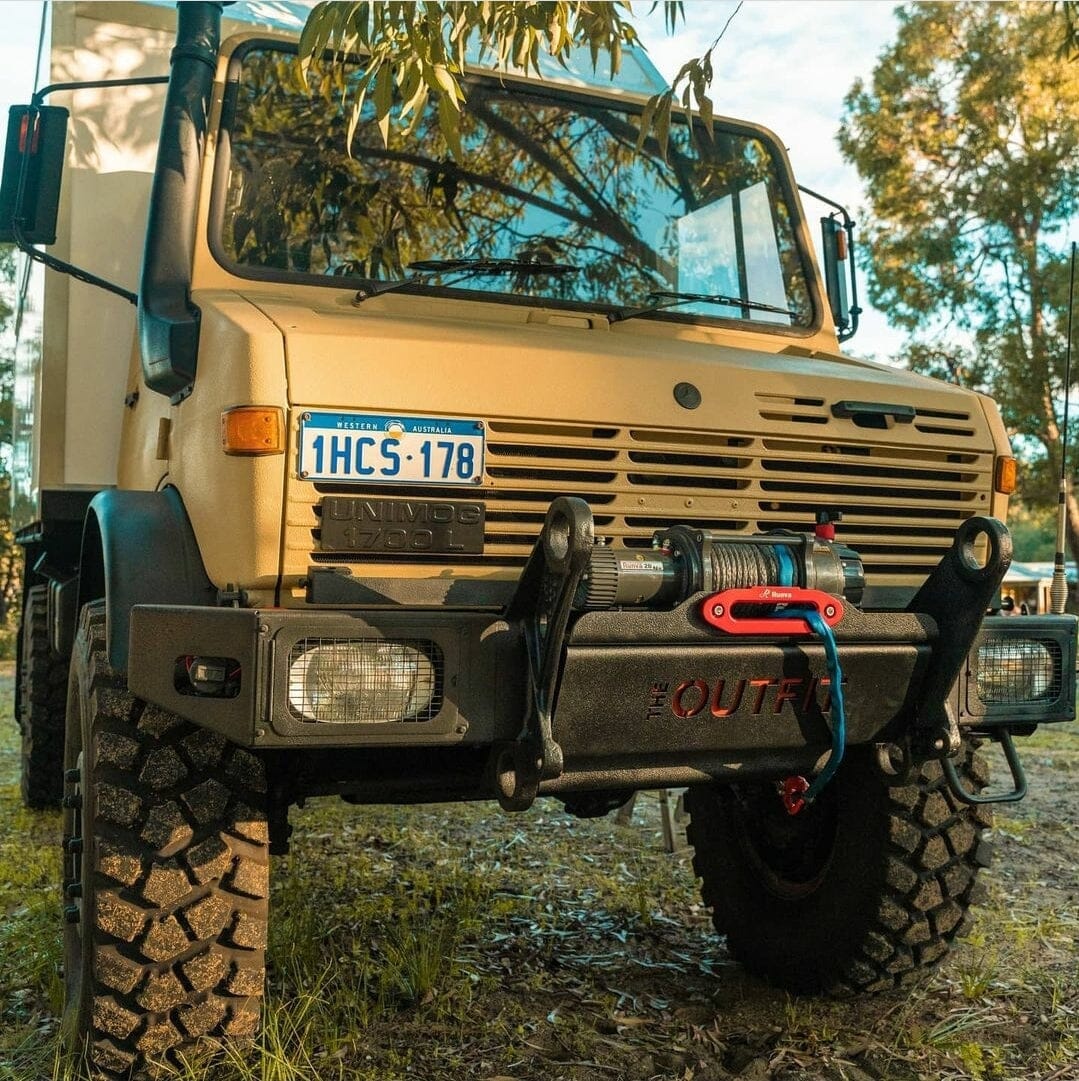

If you are looking for a heavy duty winch, for either recreational or commercial applications, the EWB20000 Premium is the winch for you. This model is perfect for your expedition Unimog, Iveco Daily, Tow Truck, marine or military applications. (+ many other applications)
Features
- 20,000LB LINE PULL CAPACITY
- IP67 INGRESS PROTECTED
- RATCHET STYLE BRAKE IN GEARBOX
- EXTREME DUTY – SUITABLE FOR COMMERCIAL APPLICATIONS
- AVAILABLE IN 12V AND 24V
- STEEL CABLE OPTION AVAILABLE
- AIR FREESPOOL CLUTCH AVAILABLE
What's in the box
- Runva EWB20000 winch with Synthetic Rope
- Winch control box
- Wired + Wireless Remotes
- Isolator switch
- Winch control box mounting brackets
- Aluminium fairlead
- Hook
- Battery cables
- Stubby cooler

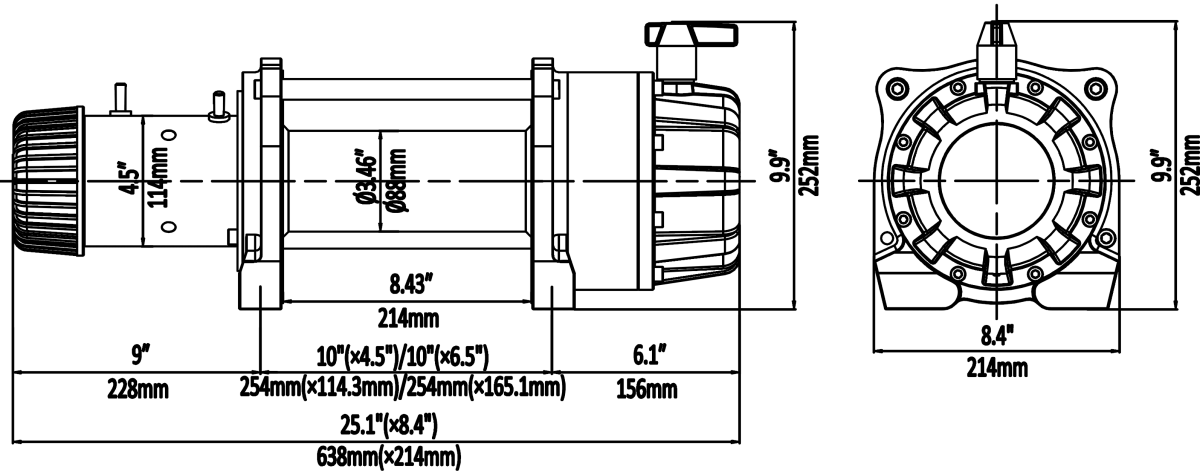

Specifications
(8X M12 BOLTS)
Performance
LINE PULL LB (KG) | LINE SPEED FT/MIN (M/MIN) | MOTOR CURRENT (AMP) | LAYER OF CABLE | RATED LINE PULL LB (KG) | TOTAL ROPE ON DRUM FT (M) | ||
---|---|---|---|---|---|---|---|
12V DC | 24V DC | 12V DC | 24V DC | ||||
0 | 26.2 (8.0) | 27.5 (8.4) | 60 | 35 | 1 | 20,000 (9,072) | 18.4 (5.6) |
6,000 (2,722) | 10.5 (3.2) | 10.8 (3.3) | 200 | 115 | 2 | 16,129 (7,316) | 39 (12) |
10,000 (4,536) | 7.87 (2.4) | 8.5 (2.6) | 280 | 160 | 3 | 13,513 (6,129) | 65.6 (20) |
14,000 (6,350) | 6.56 (2.0) | 4.9 (2.1) | 340 | 198 | 4 | 11,628 (5,274) | 87 (26.5) |
17,000 (7,711) | 5.25 (1.6) | 6.89 (1.4) | 390 | 220 | |||
20,000 (9,072) | 3.9 (1.2) | 4.26 (1.3) | 430 | 253 |
(THE MAXIMUM LINE PULL CAPACITY IS BASED ON THE FIRST LAYER OF CABLE/ROPE)
