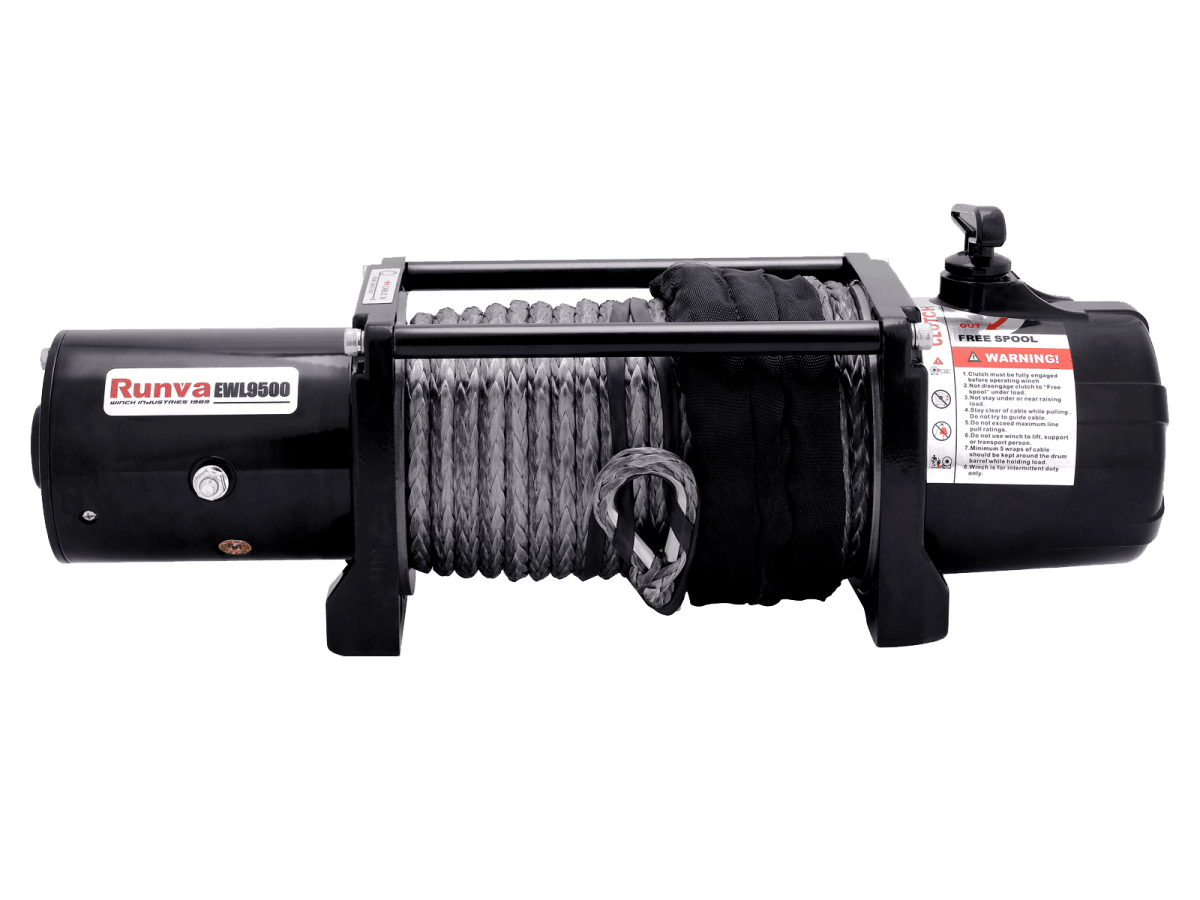

Runva EWL9500 12V with Synthetic Rope
Runva EWL9500 12V with Synthetic Rope
The Runva EWL9500 is the perfect entry level winch. With a massive 9,500lb line pull capacity, this winch will get you out of trouble. If you are looking for something strong and reliable but on a budget - this is the winch for you. This model fits all 4X4 winch bars on the market today which takes the guesswork out of it and makes it a great option for your vehicle.
The EWL9500 features automatic braking via the screw cone brake system. The gearbox is a three stage full steel planetary setup with a sliding ring gear clutch which is strong and efficient.
This winch includes several accessories which is also featured with our premium models.

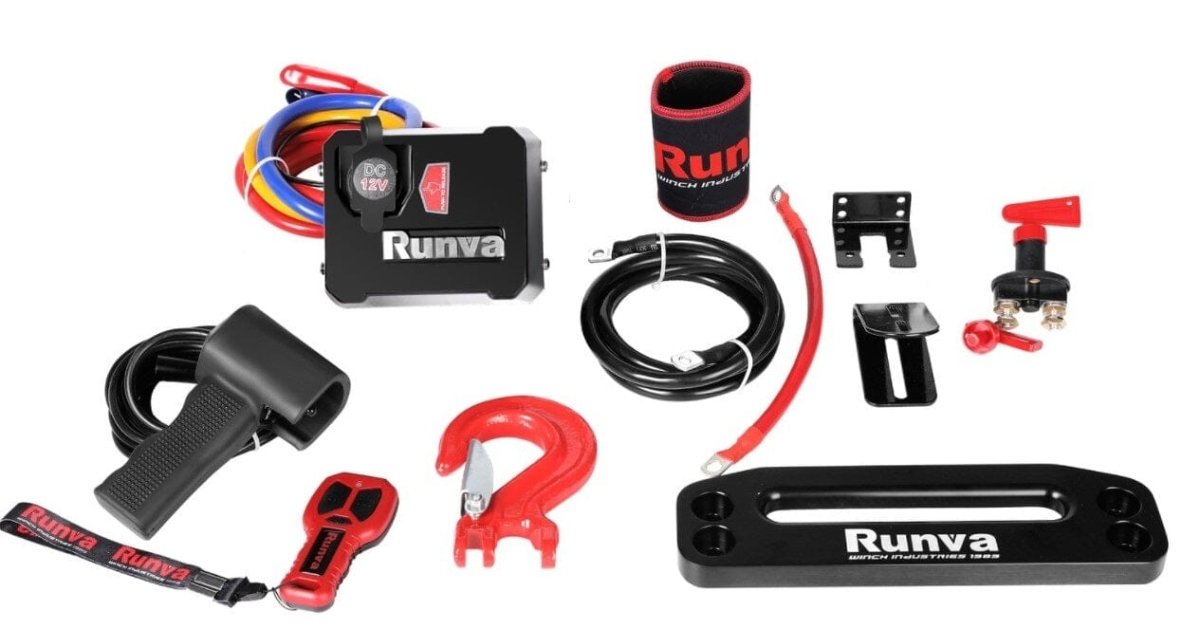

THIS WINCH INCLUDES
- Complete EWL9500 (9500lb) Winch with Control Box and Dyneema Synthetic Rope
- Heavy Duty 1.8m Battery Leads
- Heavy Duty Leads from Solenoid to Winch Motor
- 3.7m Handheld Remote
- Wireless Remote (IP67 Rated)
- 2-in-1 Aluminium Hawse Fairlead (for standard and offset fitment)
- Red Clevis Style Safety Hook
- Shackle Thimble + Bonus Shackle
- Mounting Bolts
FEATURES
- Free spooling clutch
- Full metal internal and external design
- 100% Waterproof competition grade Solenoid
- Ultra strong Dyneema rope (up to 8 times stronger than steel cable)
- Winch power in and out via remote
- Heavy duty series wound motor
- Powerful winch for heavy loads
- Limited Lifetime Warranty (5 Years Electrical, Lifetime Mechanical)
SPECS
- RATED LINE PULL 9,500LB (4,309KG)
- MOTOR (12V) 4.6KW/6.1HP
- GEAR TRAIN FULL STEEL 3 STAGE PLANETARY
- GEAR RATIO 184:1
- CLUTCH TYPE SLIDING RING GEAR
- CLUTCH HANDLE POSITION GEARBOX CAN BE ROTATED
- BRAKE AUTOMATIC LOAD HOLDING IN DRUM
- CABLE TYPE SYNTHETIC ROPE
- CABLE SIZE 10MM X 25M
- DRUM SIZE 63MM X 226MM
- MOUNTING BOLT PATTERN 254MM X 114.3MM

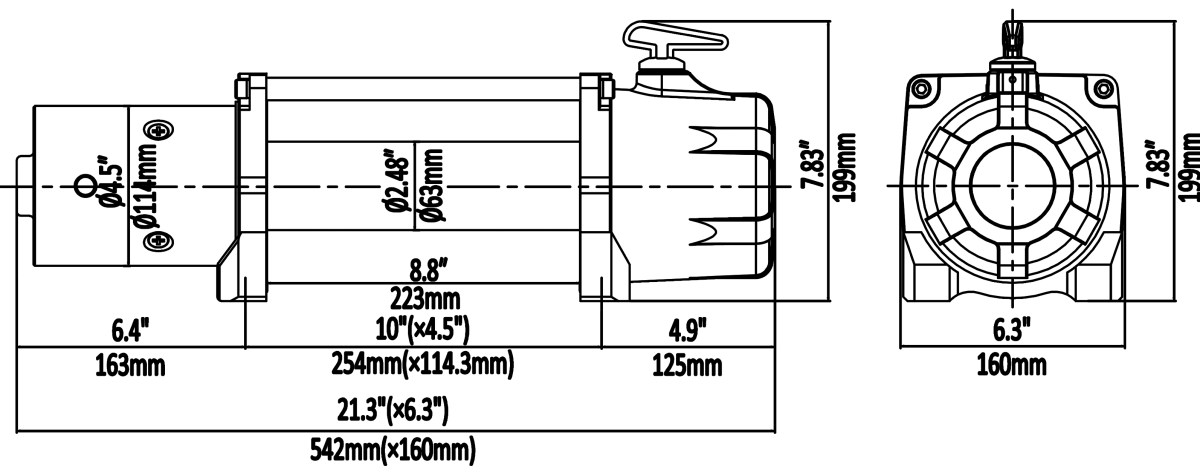

- OVERALL DIMENSIONS 542MM X 160MM X 199MM
- REMOTE CONTROL HEAVY DUTY HANDHELD + WIRELESS
- BATTERY LEADS 2X 1.8M HEAVY DUTY LEADS
- FINISH BLACK POWDER COAT
- WARRANTY LIMITED 5 YEAR ELECTRICAL AND LIFETIME MECHANICAL WARRANTY
- SKU EWL950012VD
- SHIPPING WEIGHT 27.30KG
- SHIPPING WIDTH 0.330M
- SHIPPING HEIGHT 0.330M
- SHIPPING LENGTH 0.635M
⚠️ Important Information: You are responsible for LVV compliance of purchased products and their installation, if applicable. Images are for illustration only, actual product may vary. Please contact us with any questions.
