STEDI 1000 Lumen T10 / T15 Reverse LED Upgrade
STEDI 1000 Lumen T10 / T15 Reverse LED Upgrade
LUMINANCE WITHOUT COMPROMISE.
STEDI has, yet again, endeavored to prove that halogens fall short compared to the brilliance of our LED upgrades. With an illumination of 1000 Lumens, the T10 / T15 LED will turn night into day.
PLUG AND PLAY.
For those of us that don’t want to mount auxiliary reverse lights, our high-power T10 / T15 LED is the ultimate plug-and-play solution.
EFFICIENCY ACHIEVED.
A typical halogen bulb usually has an efficiency of 18 Lumens per watt of input power, as compared to an astonishing 76 Lumens per watt of input power four LED upgrade, which represents a 4.2 x increase in brightness, and less overall power consumption.
THE NITTY
GRITTY.
Let’s face it the factory fitted halogen reverse bulbs just don’t cut it, not even close.
For those of us that don’t want to mount auxiliary reverse lights, our high power T10 / T15 LED is the ultimate plug and play solution.
A typical halogen bulb usually has an efficiency of 18 Lumens per watt of input power, as compared to an astonishing 76 Lumens per watt of input power four LED upgrade, which represents a 4.2 x increase in brightness, and less overall power consumption.
Our high brightness reverse upgrades have built-in error cancellation making them compatible with any CANBUS application.

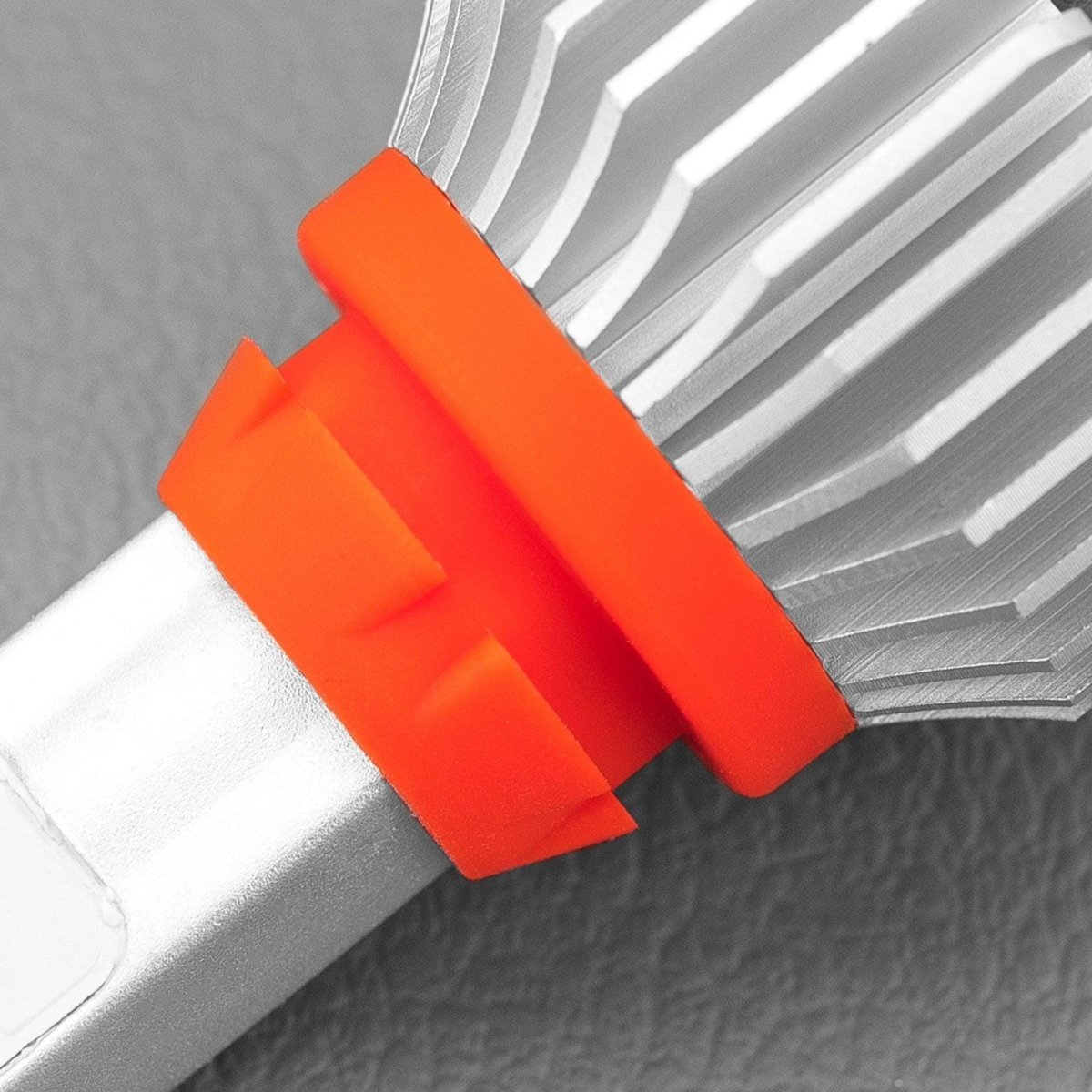

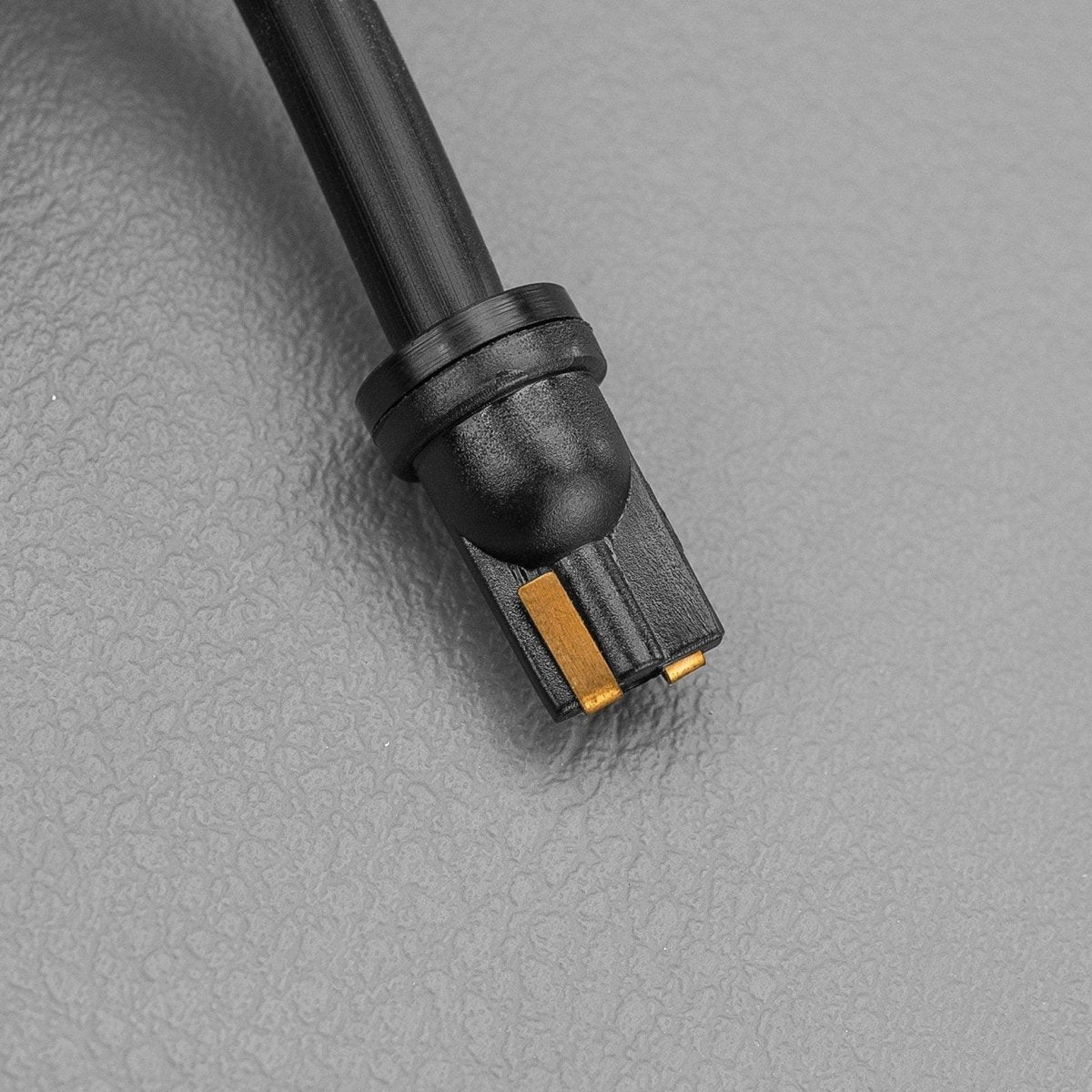

The connectors plug straight into the vehicles factory wiring. The rubber grommet fits any hole size between 13mm and 18mm
Due to the high level of brightness, we recommend that these only be used for reverse.
Sold as pairs.
TECH SPECS
HOUSING MATERIAL | Aluminium |

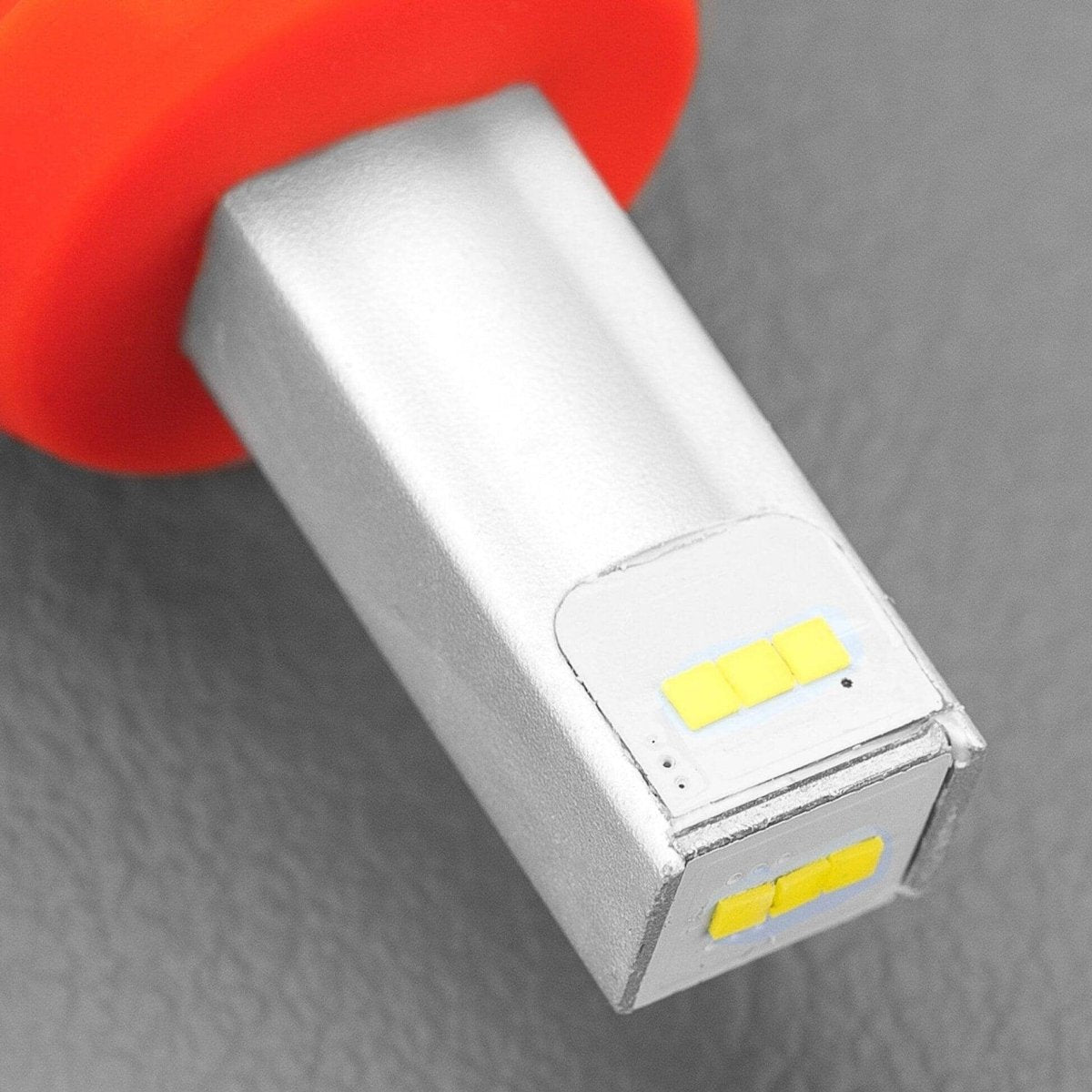

LED | 9 X SEOUL CSP emitters |
POWER | 1.0a @ 13.6v |
LUMEN | 1,000 LM ± 40 M |
COMPATIBLE VOLTAGE | DC 12v and 24v (Surge 32V) |
LIFESPAN | 30,000 Hours |
CANBUS | Compatible |
CONNECTOR TYPE | T10 and T15 |
INGRESS PROTECTION | IP65 |
OPERATING TEMP | -40°c to + 80°c |
CERTIFICATION | CE, ROHS |
COORDINATED COLOUR TEMP | 5800K |
⚠️ Important Information: You are responsible for LVV compliance of purchased products and their installation, if applicable. Images are for illustration only, actual product may vary. Please contact us with any questions.
