STEDI

STEDI Marine White C4 LED Cube Light (Red/White Dual Lens)

STEDI Marine White C4 LED Cube Light (Red/White Dual Lens)

SKU:S2-ST-07-CFC-304

Regular price $147.50
Regular price Sale price $147.50
Sale Sold out
Tax included. Shipping calculated at checkout.

GIANT SLAYING PERFORMANCE.

Our latest iteration of the C4 includes our white/red dual lens providing extended functionality whilst still retaining its renowned performance.

2 BEAM OPTIONS

1 LIGHT.

The C4 comes in 2 variations of beam options to help you build the perfect lighting for the required application. A dual-tone lens allows you to easily customise your lighting needs by switching between a crisp 5700k white light, or a red diffused 650nm to maintain your natural night vision.

NAVIGATE & SEE BEYOND.

Constructed with high quality materials, our C4 Marine Edition is protected against vibrations, accompanied by an IP68 resistance rating.



THE NITTY
GRITTY.

Marine White C4 LED Light Cube | Dual Lens

  • 2 x CREE XM-L2 5700K
  • 2 x XPG3 650nm
  • Environmentally sealed and moulded Deutsch DT-2 connector with male wire tail included
  • RFI and EMI suppressed circuity ensure no interference with sensitive radio equipment

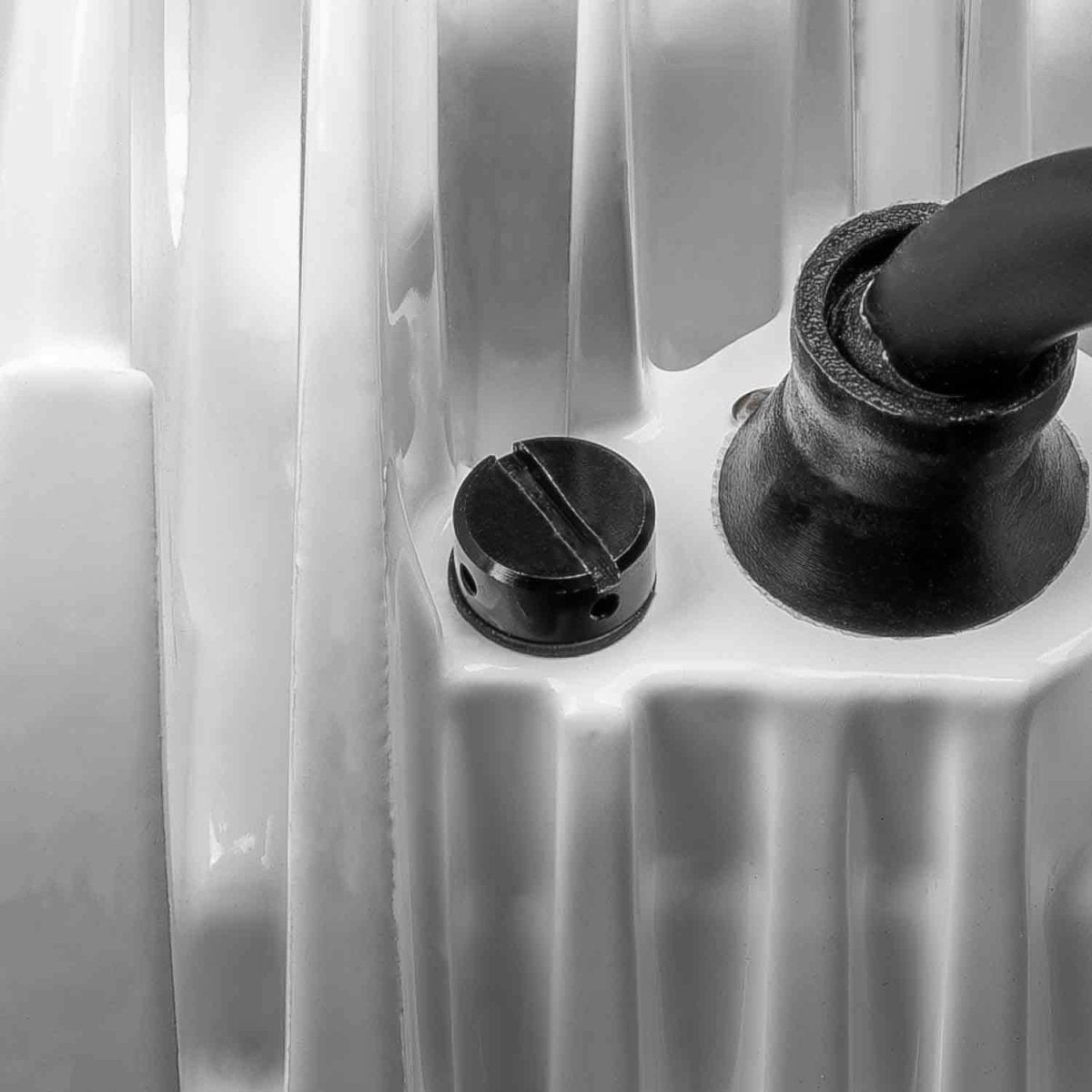

  • Fitted with Gore Breather Vent – Certified IP68 | Submersible to 3m
  • 316 Series Stainless Steel Bracket and Fasteners
  • Above Ground Lead



Beam Characteristics

  • Spot Beam: Relentless we’re still shocked every time we turn it on – Potent enough to take on the task of stealth driving light.
  • Diffused Beam:  A homogeneous flood beam that is smooth and almost cloudy in light distribution making it an ideal near-field work light, reverse, or camp light.
  • Wide Beam: The wide beam produces a deeper flood beam in comparison to diffuse, better suited to applications requiring a longer throw flood beam.
  • Dual Lens: Providing a useful flood beam when a large area of clear visibility is required with the addition of a 650nm (red)/5700k (white) diffused beam ideal for working under without dazzling your eyes.



TECH SPECS

LED POWER OUTPUT 2 x 10w LEDs (flood) 2 x XPG3 (diffused)
LUMENS 116 metres @ 1 Lux
OPERATING VOLTAGE 12v & 24v Compatibility
IP RATING IP68
LED CREE XML2
COLOUR TEMPERATURE (CCT) 5700K (flood) / 650nm (diffused)
MATERIAL Die Cast Aluminium Housing
LENS Lexan Optical
MOUNTING BRACKET Stainless Steel U-Bracket
BOLTS AND FITTINGS Included
BEAM TYPE Spot
LIFE SPAN 50,000 Hours
AMP DRAW 1.5A (flood) / 1.1A (diffused) @ 12.0v
WEIGHT 0.550kg



WHAT'S INCLUDED

  • 1 x C4 Marine Spec LED Cube Light (red/white dual lens)
  • Stainless U Mounting Brackets
  • Mounting Hardware

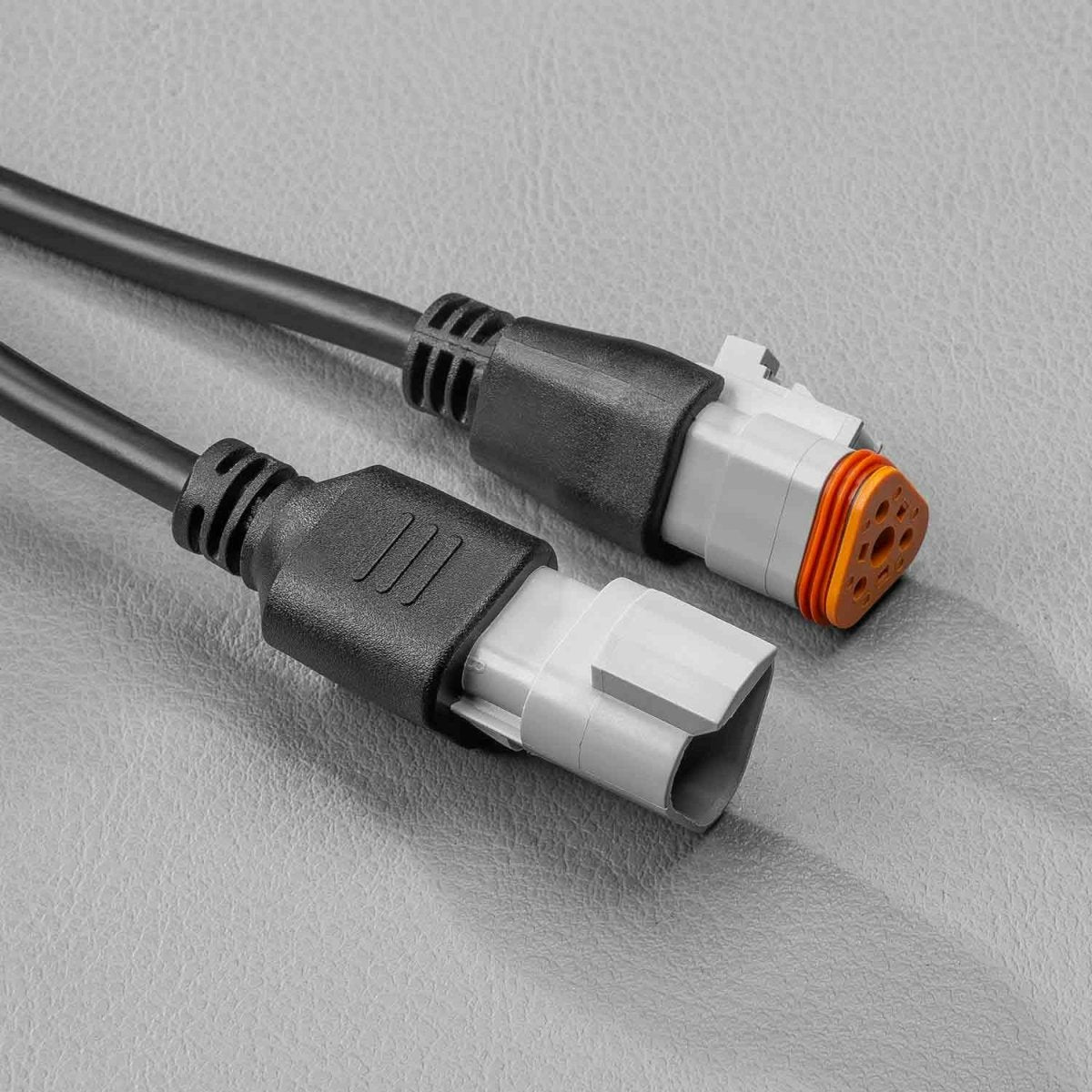

  • Male and Female Deutsch Connectors (DT-3)
  • Vibration Dampener

⚠️ Important Information: You are responsible for LVV compliance of purchased products and their installation, if applicable. Images are for illustration only, actual product may vary. Please contact us with any questions.
