Stedi

Stedi Quad Pro LED Driving Lights

SKU: S2-LEDQUAD-PRO

$685

Only 3 pieces in stock!

Registered Design 202013629

COMPACT DESIGN | MEGA PERFORMANCE

Up until this moment in time, the compact LED driving light space has been grossly neglected. The only compact offerings available seem to chronically suffer from compact performance. To add insult to injury most look like they were penned by a guy back in the 1970s who had an extensive background in drawing construction bricks.  Enter our all-new QUAD PRO. You’re welcome.

A LEGENDARY BLOODLINE

Any product within the STEDI offering that wears the "PRO" nameplate represents the very best in its class - You only have to look at our iconic TYPE-X & ST3303 PRO, which are both the ultimate nod to the PRO standard. It is was the only logical choice then that our all-new QUAD PRO utilizes the legendary TYPE-X PRO DNA. Yes! The same reflector, same LED, all buttoned up into compact yet explosive performance package.

CUSTOMISABLE LIKE NO OTHER.

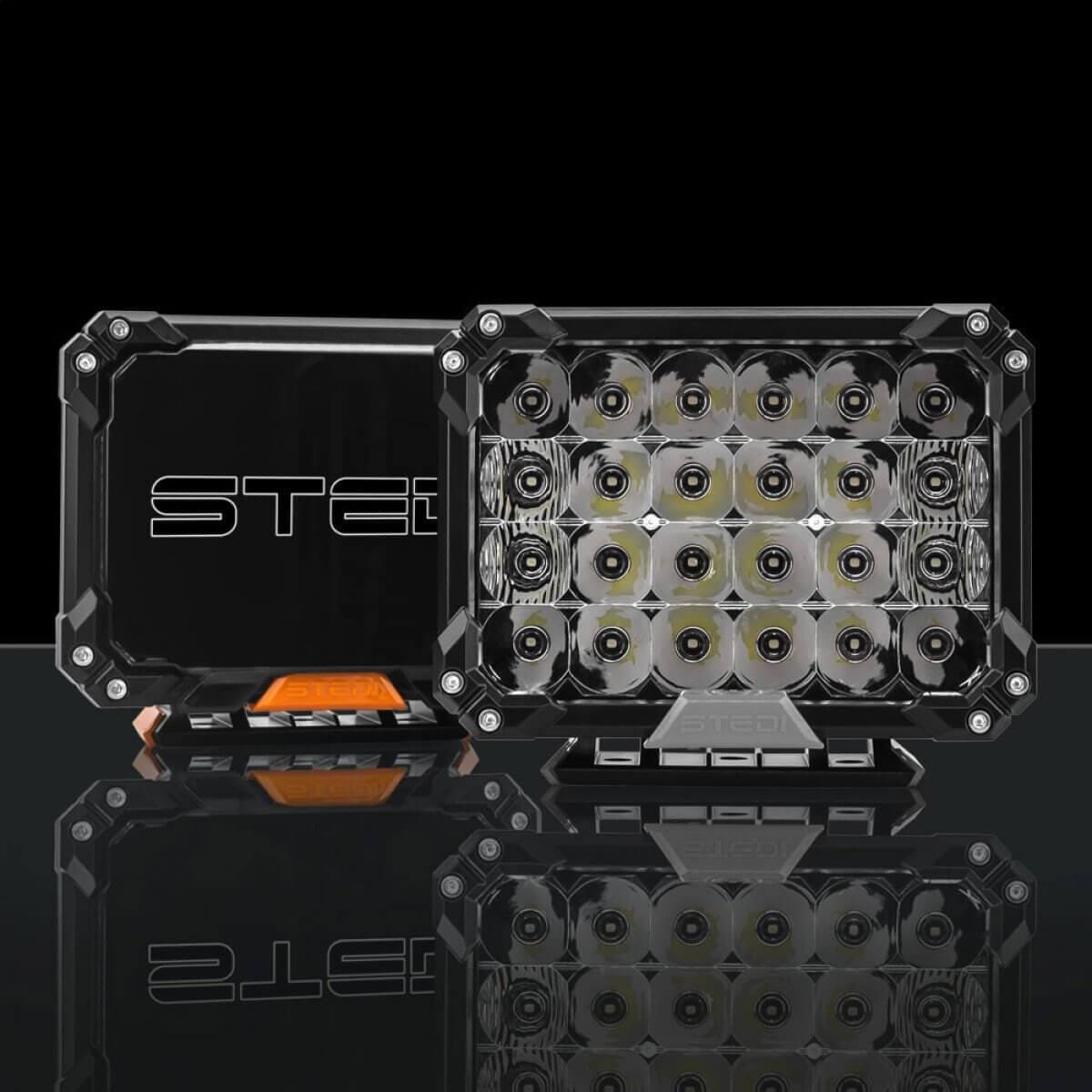

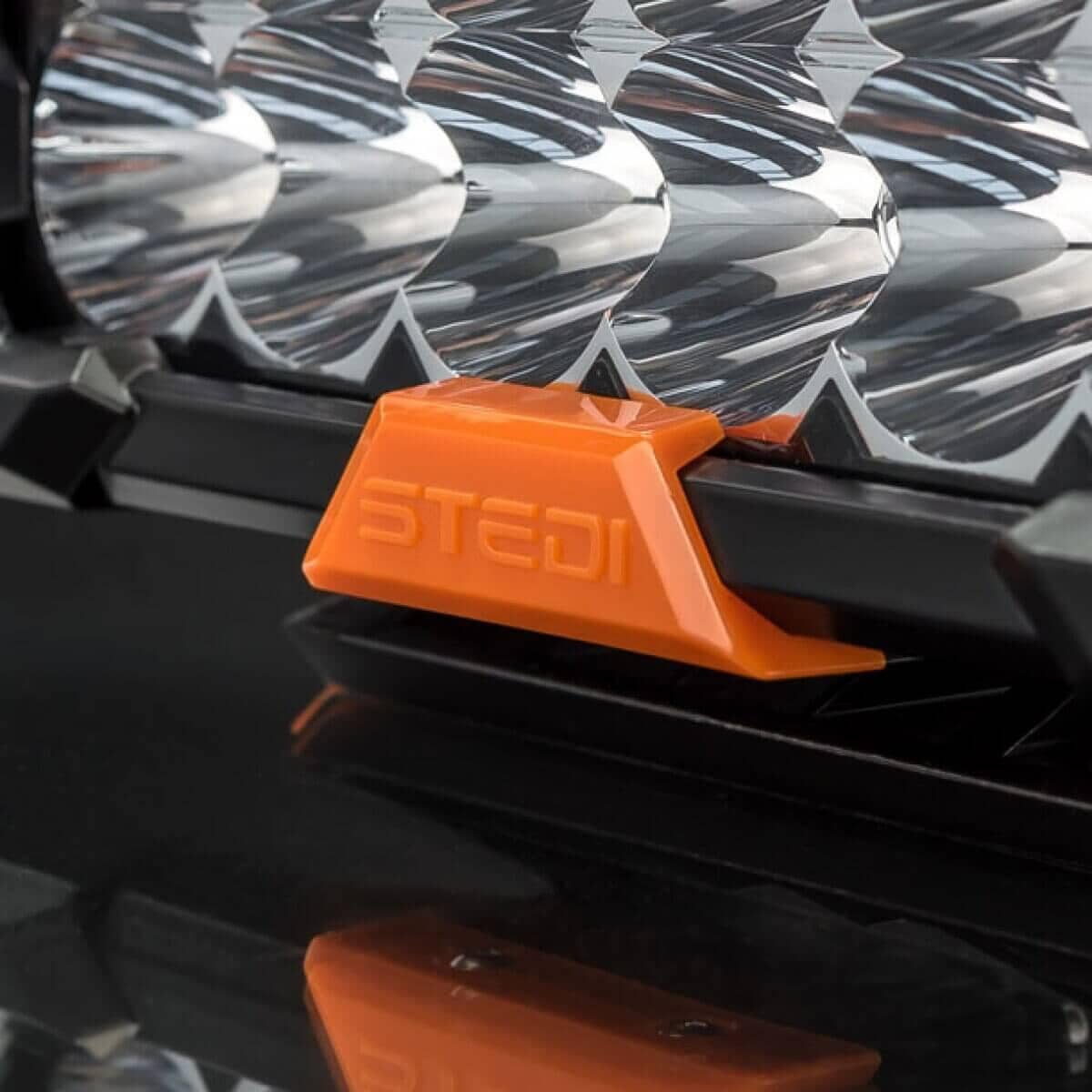

Included in the kit is a pair of STEDI blackout cover, plus orange and grey colour customization caps. The iconic STEDI Smiley covers are available to purchase separately, as are optional blue, green, red, and yellow colour caps.

DETAILS

Registered Design 202013629

The compact housing design offers endless possibilities in terms of mounting locations.  We think these are going to be hugely popular as roof-mounted arrays and on bull bars with minimal clearance like the AFN bars.

KEY FEATURES

  • Includes our legendary Easy-Fit plug and play high beam wiring harness
  • IP68 Ingress protection means our QUADS are 100% immersible in water and dust-tight.
  • 5700K Colour temperature provides just the right amount of warmth to cut-through air-born particles.
  • Environmentally sealed Deutsch DT-2 connectors
  • RFI and EMI suppressed circuit design, means no interference with radio or communications equipment.

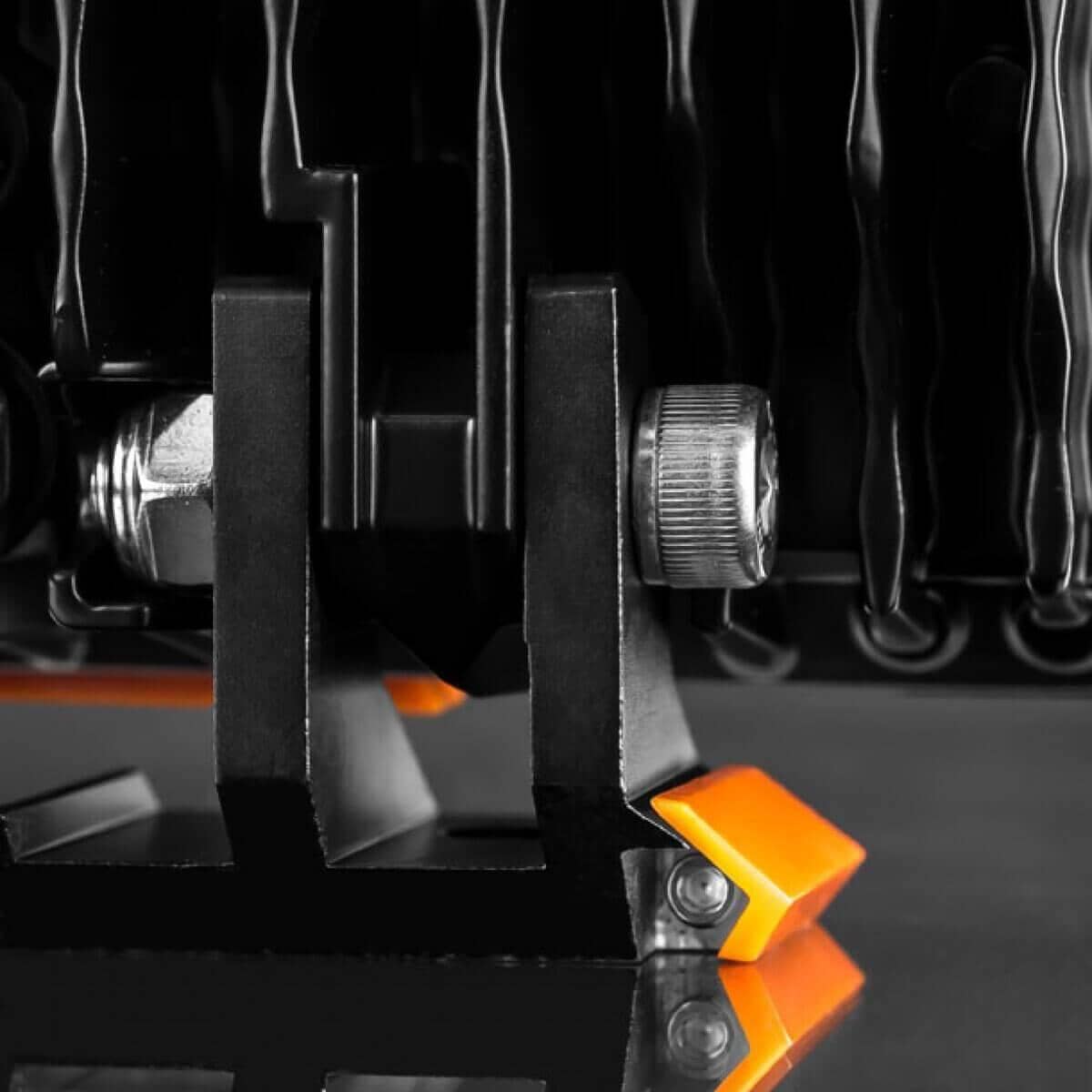

  • High-Pressure Die-Cast Bracket
  • Spread and Spot beam reflectors built-in.

The price quoted is for a pair & includes our legendary Plug & Play Smart Wiring harness.

SPECIFICATIONS

LED 24 x Oslon High-Flux LED
RAW LUMENS 17,040 (Pair)
TESTED LUMENS 11,360 (Pair)
AMP DRAW  7.4A @ 13.2v (each)
POWER DRAW 97W (each)
CANDELA
693,889cd
BEAM PATTERN 4 x Spread 20 x Pencil Beam
INGRESS PROTECTION IP68 | Submersible up to 3m
COLOUR TEMP (CCT)  5700K
VOLTAGE COMPATIBILITY  12v & 24v
LUMEN MAINTENANCE  50,000 LM-80
WEIGHT (each)
PHOTOMETRIC DATA
10 M 6,938 Lx
50 M  277 Lx
200 M 17 Lx
300 M 7.7 Lx
400 M 4 Lx
500 M 2.7 Lx
833 M 1 Lx

WHAT’S IN THE BOX

  • 2 x QUAD Pro LED Spot Lights
  • 2 x STENCIL Black Out Covers
  • 1 x Set Orange Colour Caps (fitted)
  • 1 x Set Grey Colour Caps
  • Easy Fit High Beam Wiring Harness
  • H4 & HB3 adapters to High Beam
  • Installation Manual
  • Stainless fitting hardware
