STEDI ST1K 21.5 Inch E-Mark LED Light Bar - Yellow

STEDI ST1K 21.5 Inch E-Mark LED Light Bar - Yellow

SKU:S2-LEDST1K-20-20L-YEL

Regular price $308.00
Regular price Sale price $308.00
Sale Sold out
Tax included. Shipping calculated at checkout.

CERTIFIED E-MARK COMPLIANT.

Our new ST1K series is ECE approved, making it road-legal in Europe and New Zealand. Featuring our innovative hooded reflector design with rear-facing LEDs enables unprecedented beam control - not possible with more conventional optics. The 20 LED is ideal for stealth installations – think lower grill, behind the upper grille, or the STEDI number plate light mounting bracket.

BITE THE DUST

Wide-horizontal beam patterns, coupled with our edge-to-edge yellow bonded lens, ensure maximum visibility across all driving conditions. Pierce through dust and fog like never before, while enjoying a significant reduction in glare and reflection from road signs.

DISCOVER NEW HORIZONS.

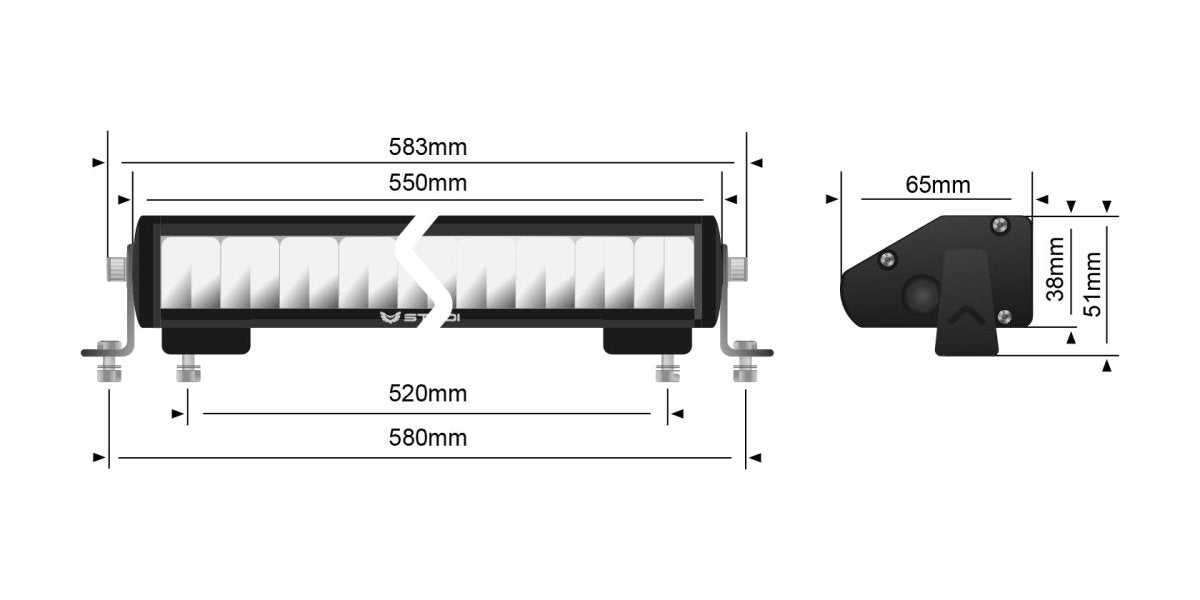

Urban adventure or journey into the wilderness – The ST1K will get you there. The unique geometry of the 6063 aluminium extrusion body measures at only 38mm in height. The ST1K is the first-ever light bar to feature or innovative edge-to-edge bonded lens, adding a new dimension in design. The design adds subtle yet high-end styling to any class of vehicle that needs a high performing stealth driving light.

THE NITTY
GRITTY.

THE NERDY STUFF

  • 20 x 5W OSRAM LEDs
  • RFI and EMI suppression circuit. Guaranteed to not interfere with Radio or GPS Equipment
  • IP68 - Submersible to 3m
  • Environmentally sealed Deutsch DT-2 connectors
  • Innovative hooded optics
  • Driving Beam E mark compliant beam.
  • Heavy Duty Adjustable Bottom Mounts & Side bracket included.
  • Reverse Polarity Protected Circuit (RPPC)
  • Electronic Thermal Management
  • Built-in Voltage Surge Protection

INCLUDES: Our high current Easy-Fit Plug & Play Wiring Harness. (Switch, Fuse, Relay HB3 and H4 high-beam piggy back adaptors)


TECH SPECS

LED MANUFACTURER OSRAM
LED COUNT 20
VOLTAGE 9V - 32V
CURRENT DRAW (AMPERES) 8.0a @13.6v
LENS MATERIAL Optical Grade, Makrolon
RAW LUMENS 5,920Lm
PEAK INTENSITY (CANDELA) 219,792cd
HOUSING MATERIAL A360.0 Cast face plate, extruded Aluminum heat sink
LUMEN MAINTENANCE 50,000 (LM80)
INGRESS PROTECTION IP68
OPERATING TEMP -40°C~+150°C
WEIGHT 1.290kg

⚠️ Important Information: You are responsible for LVV compliance of purchased products and their installation, if applicable. Images are for illustration only, actual product may vary. Please contact us with any questions.
