STEDI T20 (7440, 7443) Wedge LED Bulbs (Pair)
STEDI T20 (7440, 7443) Wedge LED Bulbs (Pair)
PURE WHITE 5700K.
Our T20's use a 5700k temperature for a whiter/modern look that will have an increased performance over the factory halogen bulbs. Our STEDI Copperheads headlight conversions also run 5700k which combined will bring your vehicles front end out of the dark ages and into 2018.
BRIGHTER.
With a low amp rating of just 0.2a @ 13.6v the brightness increase over a standard halogen with lower power consumption is reason enough in itself to make the move to upgrade to LED.
APPLICATION.
Mostly suited to parkers and brake/reverse lights and DRLs, the T20's can also be found in specific vehicles interior map/dome light. For a helpful guide explaining the types of connectors and fittings, head over to our interior LED conversion guide in our blog.
THE NITTY
GRITTY.
T20 7443 W21/5W Wedge LED Light Dual Filament Parker You've upgraded your headlights to LED now you're looking at your parkers in all their awful yellow glory. Our T20 wedge LED is the finishing touch to bring the front end of your car back into the 20th century.
KEY TECHNICAL FEATURES | T20
- CANBUS friendly - resistive Canbus cancellation built-in
- Constant Current circuit - Avoids compromising LED life & provides consistent illumination across all LEDs
- Compatible from 9v to 30v circuits.

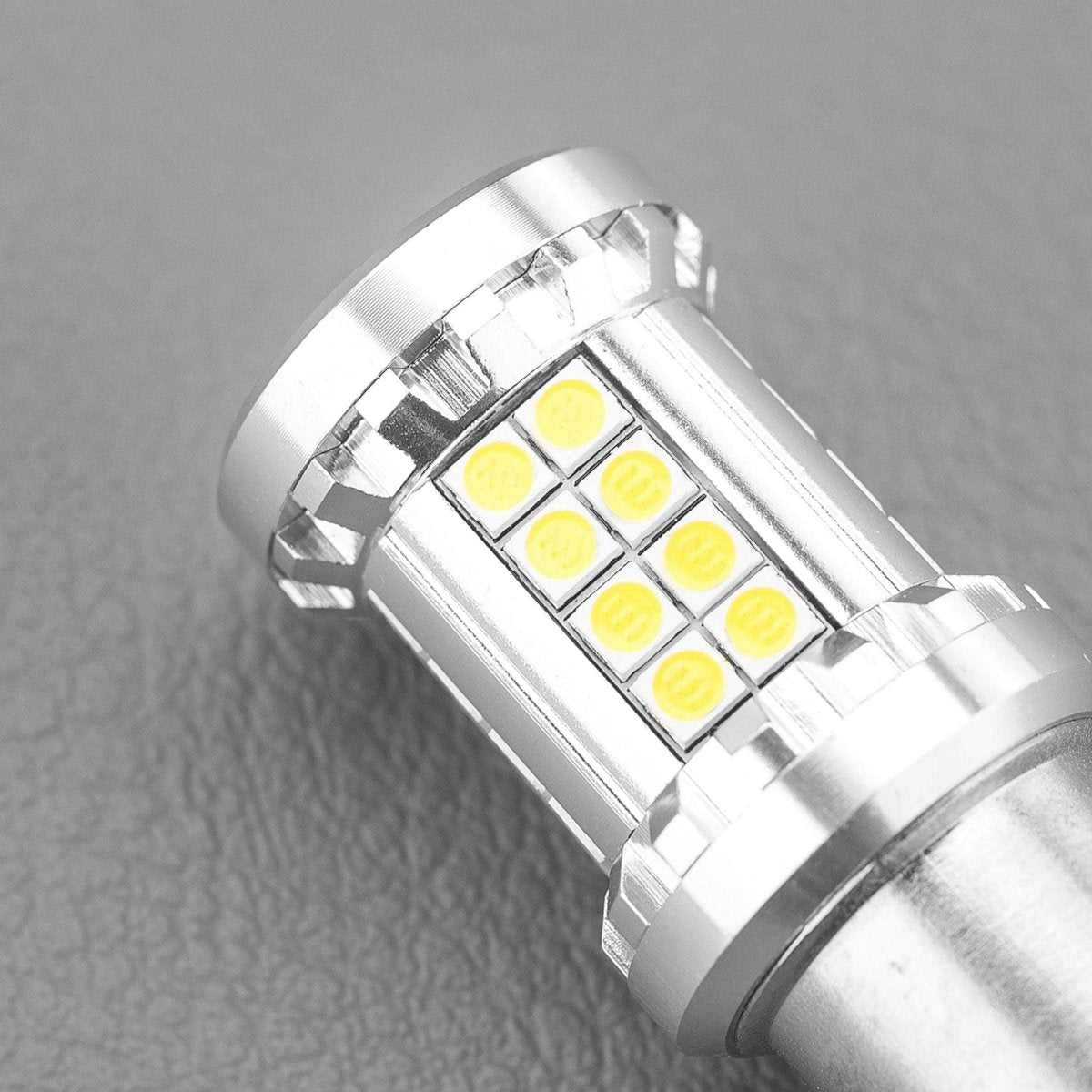

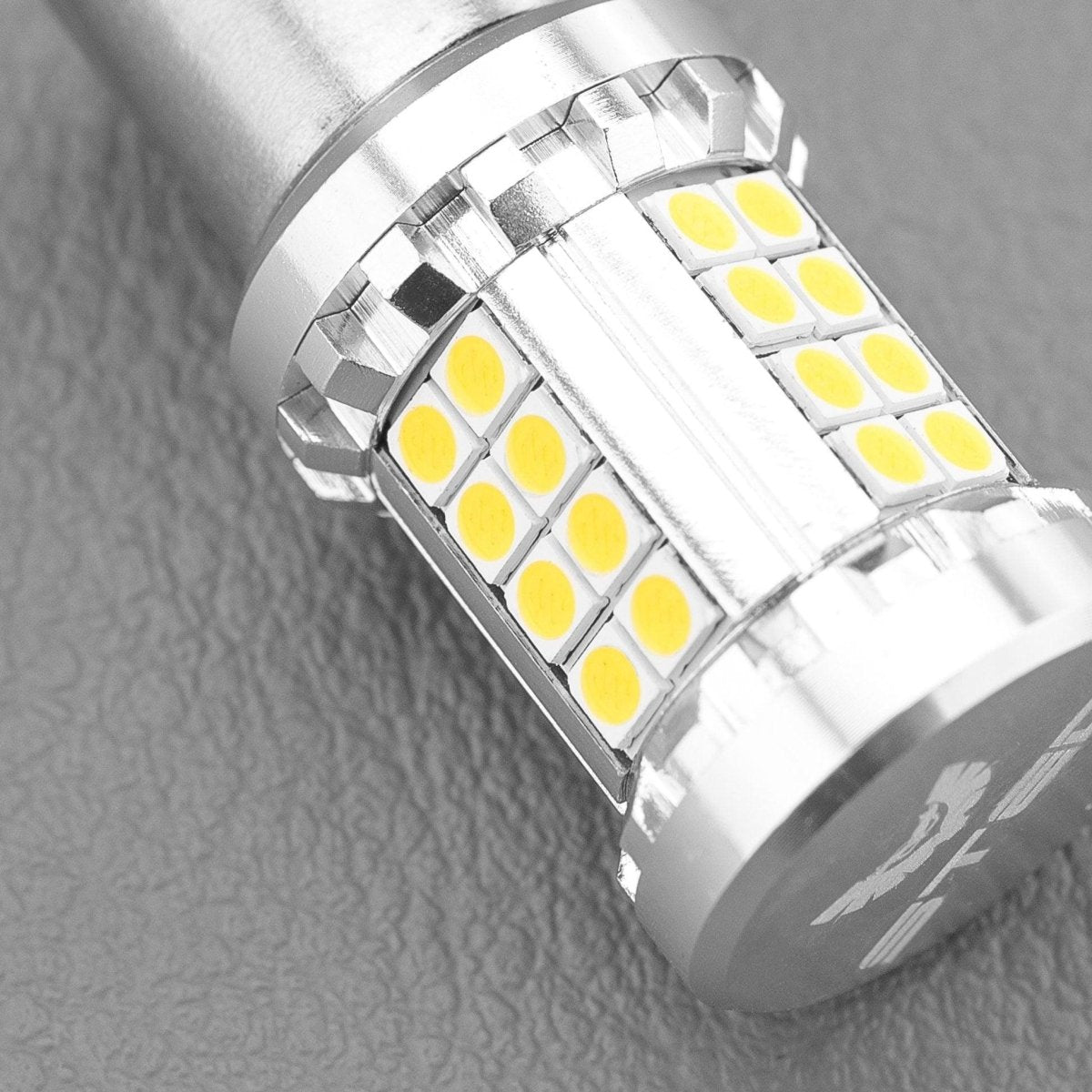

- 66SMD LED for uniform light distribution
COMMON USES FOR 7443 / 7440 BULBS

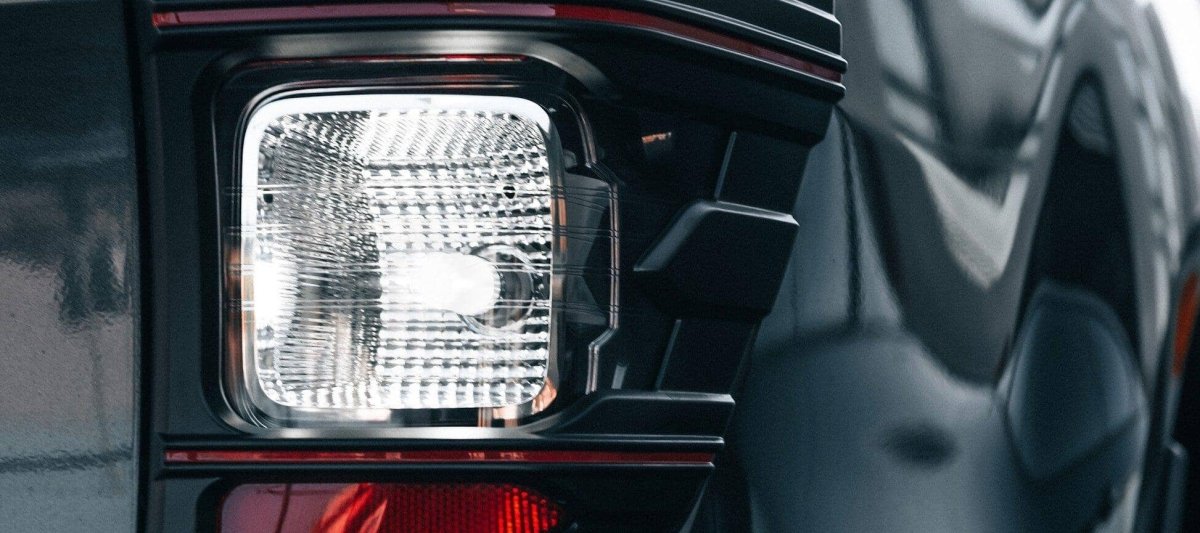

- Parker Lights
- Brake Light / Tail Lights
- Indicator Lights
- DRLs

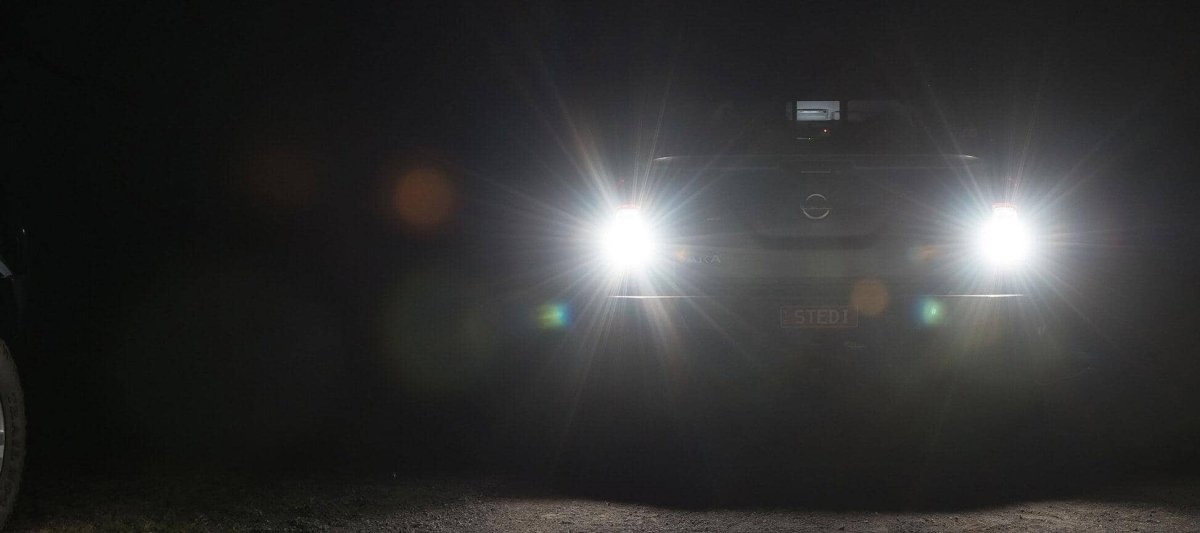

- Reverse Lights

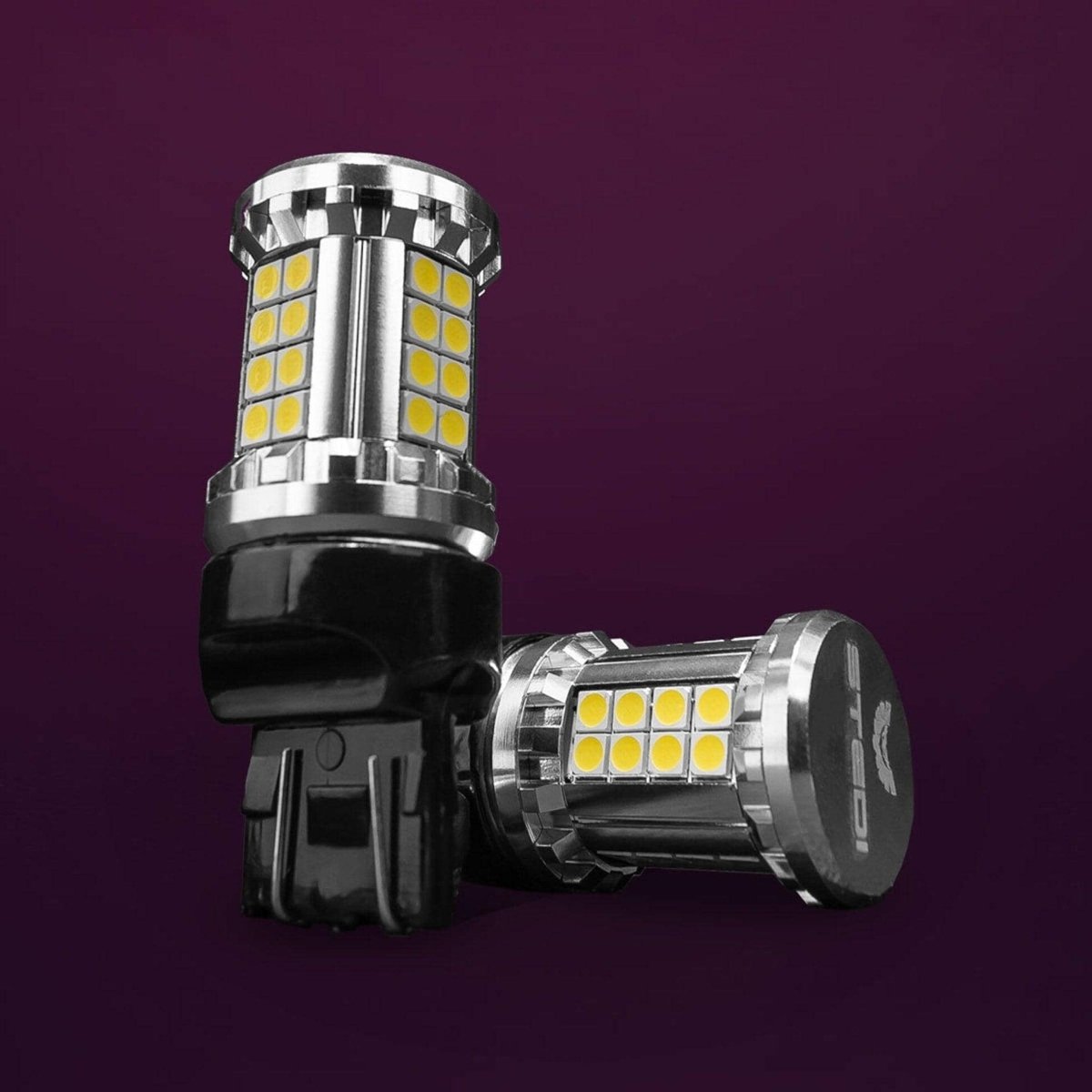

Sold in packs of 2
Compatible with 7440 and 7443 W21/5W Wedge LED Light Dual and Single Filament.
Direct replacement for the following W21/5W / 3057 / 3157 / 3457 / 4057 / 4114 /. 4157 / P27/7W W21W
TECH SPECS

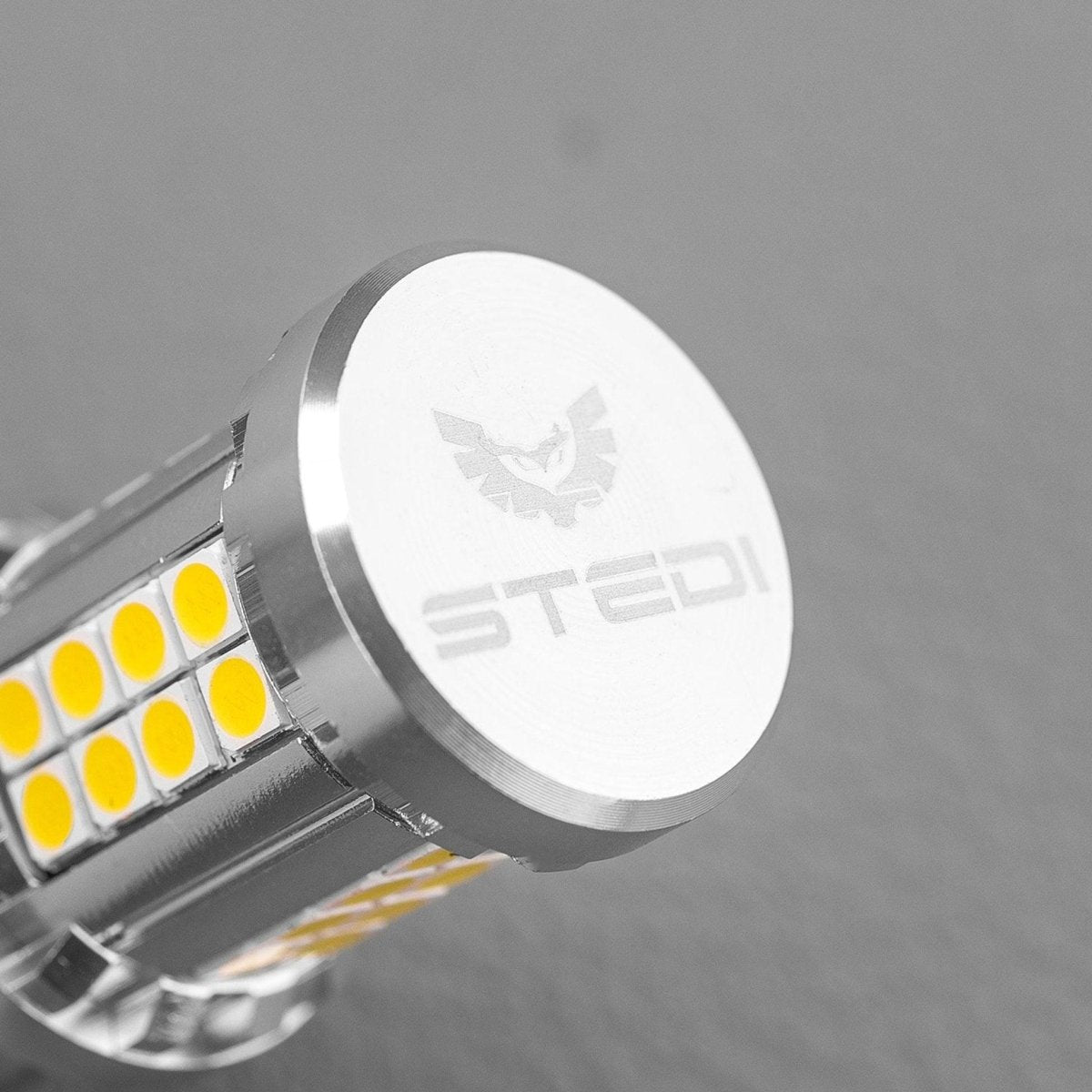

HOUSING MATERIAL | Aluminum |
LED | 3030 |

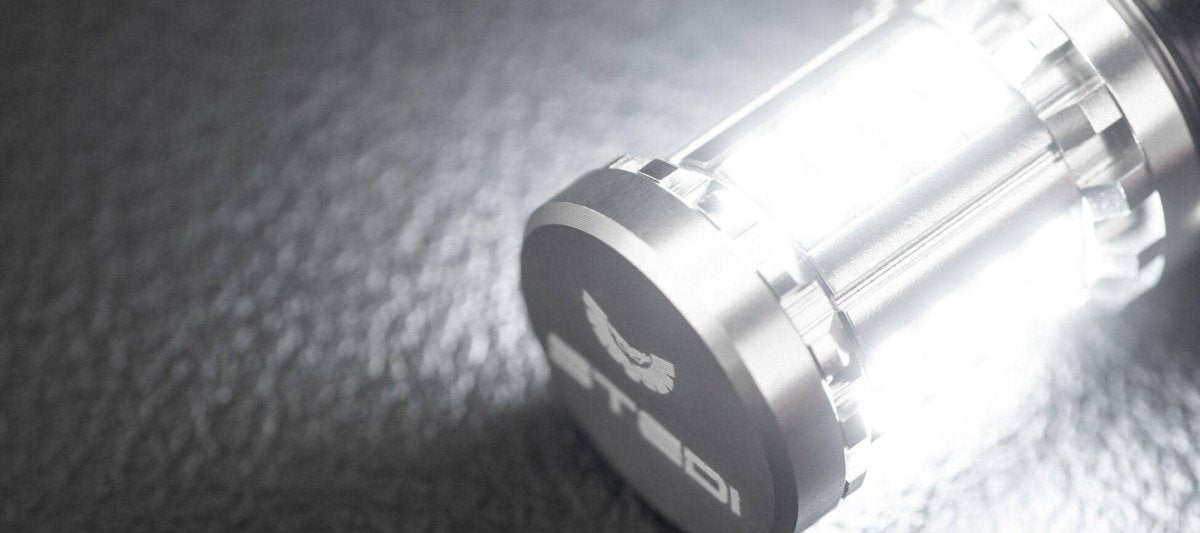

LUMINOUS FLUX (ON HIGH) | 609 Lumens |
LUMINOUS FLUX (ON LOW) | 120 Lumens |
POWER | 0.2a @ 13.6v |
COMPATIBLE VOLTAGE | DC 12v and 24v |
LIFESPAN | 30,000 Hours |
CANBUS | Built-In |

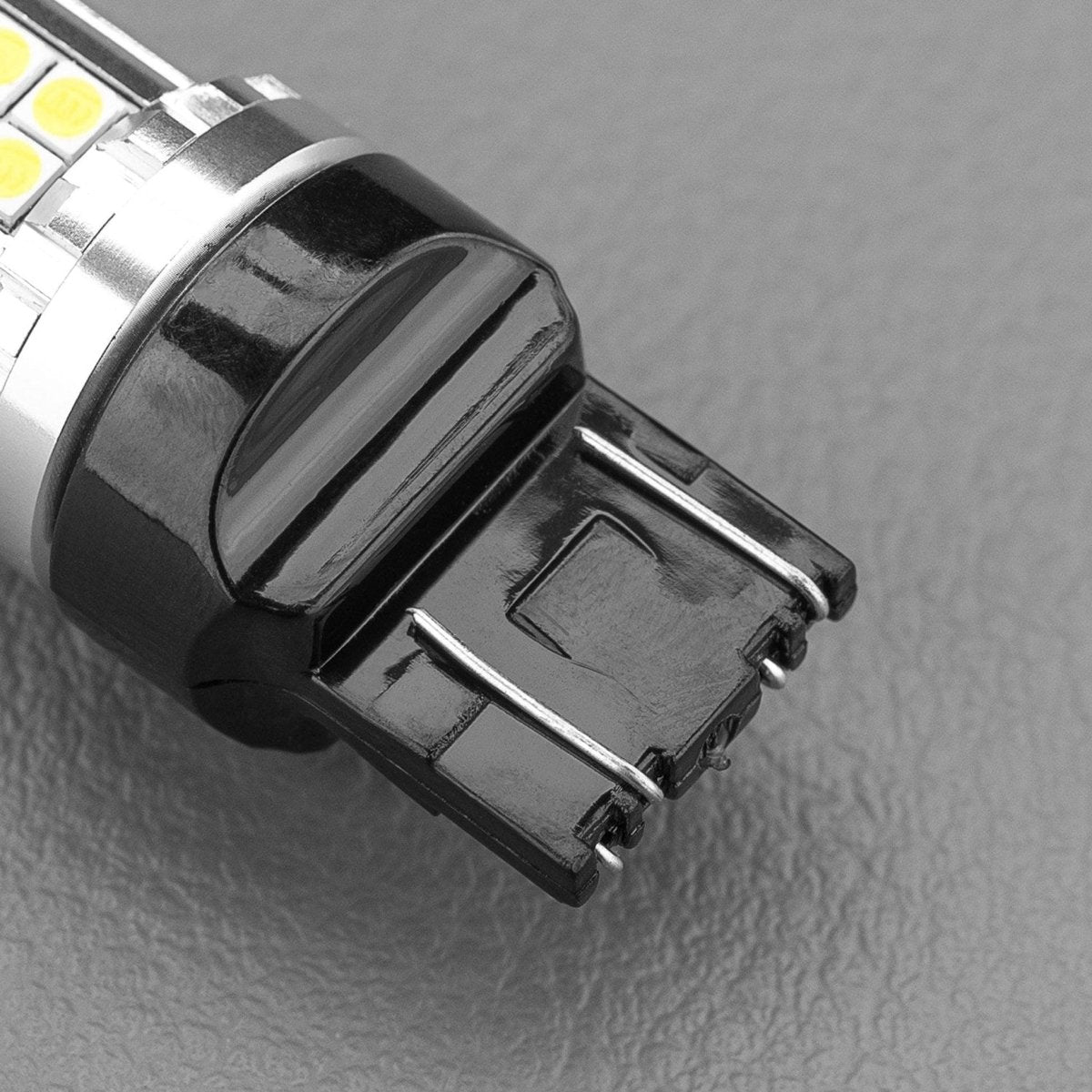

CONNECTOR TYPE | T20 7443 & 7440 |
INGRESS PROTECTION | IP65 |
OPERATING TEMP | -40°c to + 80°c |
CERTIFICATION | CE, ROHS |
RENDERING INDEX | 83 CRI |
⚠️ Important Information: You are responsible for LVV compliance of purchased products and their installation, if applicable. Images are for illustration only, actual product may vary. Please contact us with any questions.
