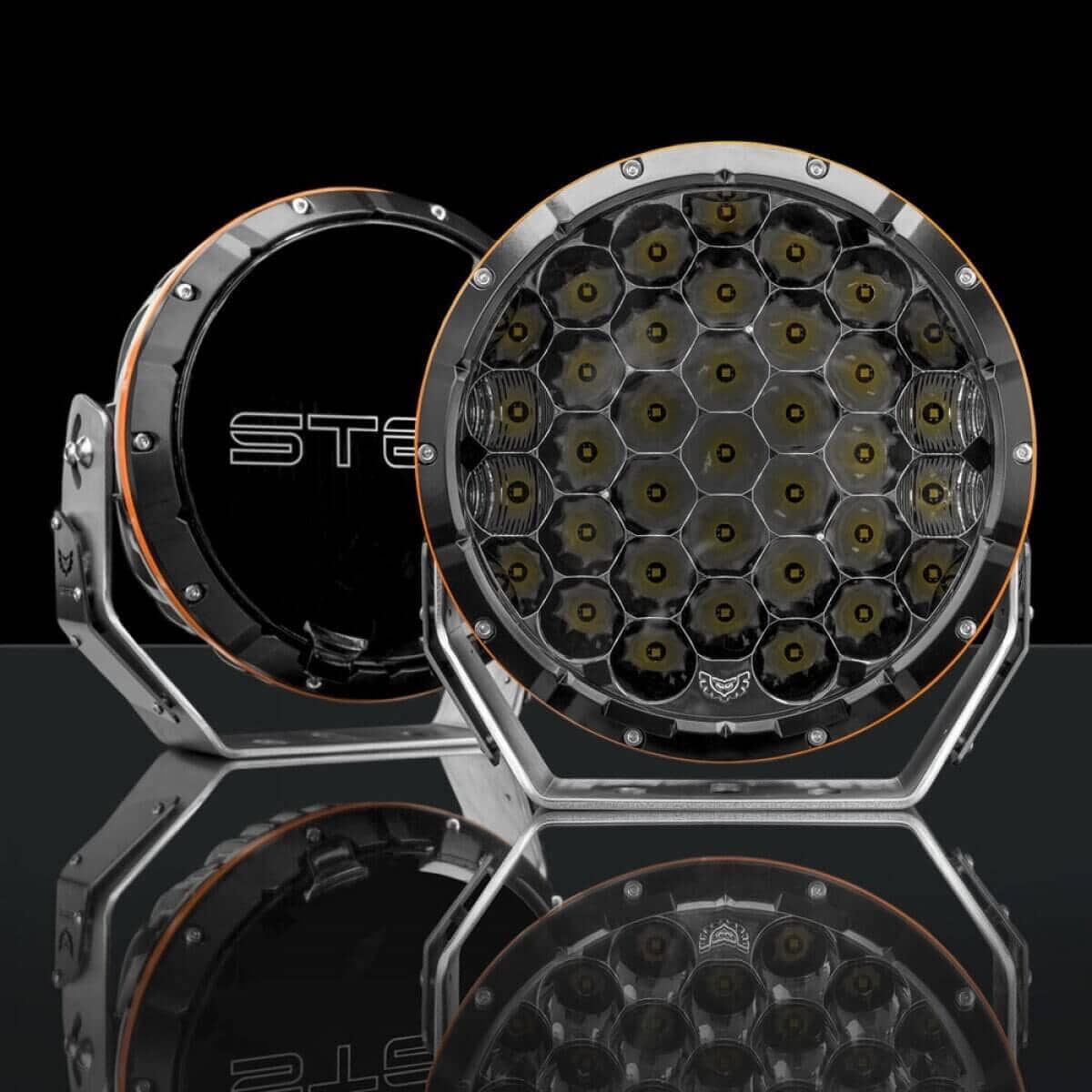

STEDI Type-X Sport 8.5 Inch LED Driving Lights

STEDI Type-X Sport 8.5 Inch LED Driving Lights

SKU:S2-LEDTYPE-X-SRT

Regular price $638.00
Regular price Sale price $638.00
Sale Sold out
Tax included. Shipping calculated at checkout.

The Stedi Type-X LED Driving Lights are the very best representation of our Stedis' spirit and culture. The performance & quality surpasses that of the most respected players in the industry.

We give you the Stedi Type-X Sport 8.5 Inch LED driving lights.

HIGH PERFORMANCE - ACCESSIBLE PRICE

We welcome the all-new Type-X Sport – Our most affordable driving light yet. Our very existence as a brand is to offer high-performance, high-quality driving lights at accessible prices. Compare build quality, performance and list of inclusion with other offerings on the market and you will conclude that our Type-X Sport is peerless. (Registered Design Number 201914860 & Registered Trademark).

LEGENDARY TYPE-X DNA

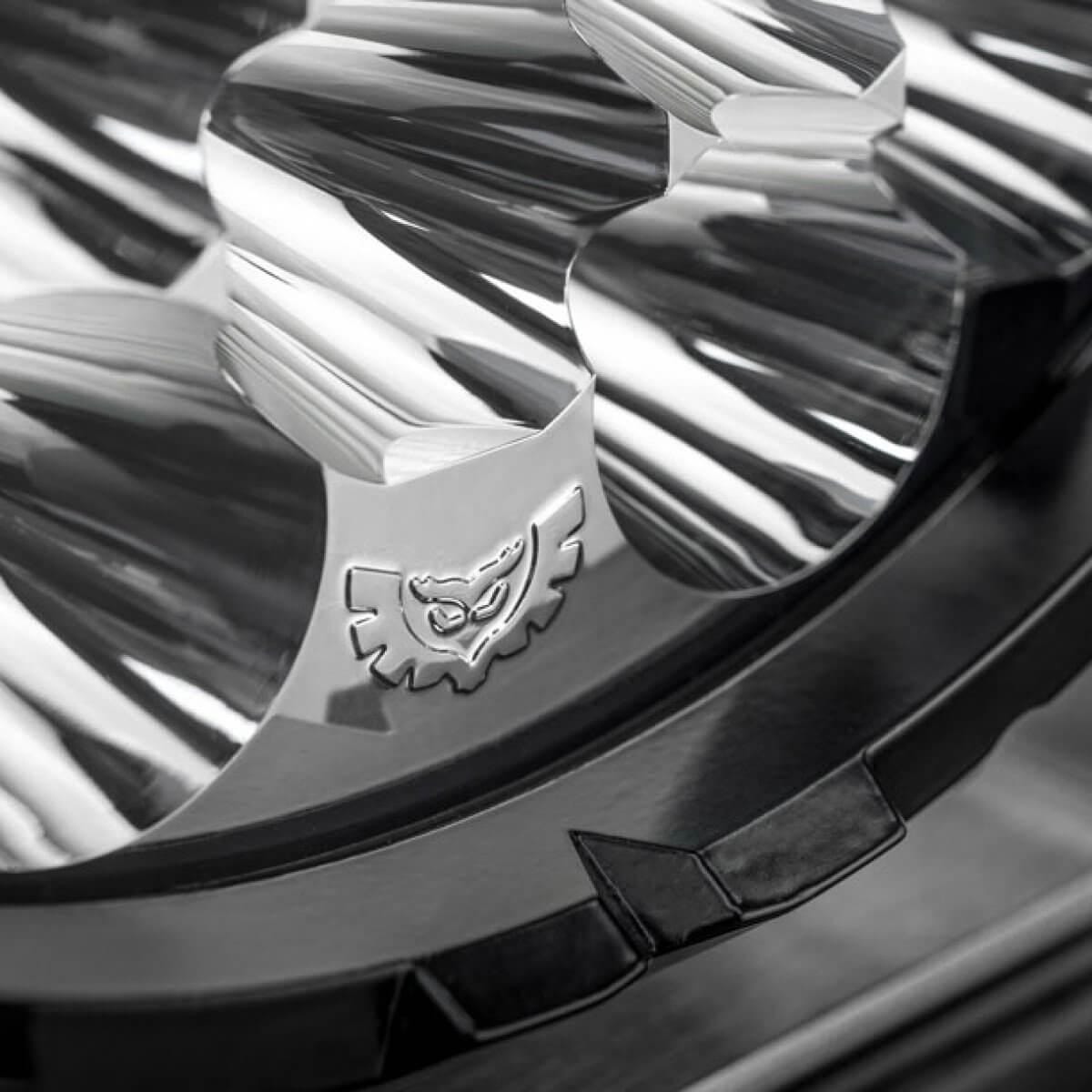

Three years since the inception of original Type-X, we’ve taken an already proven platform and completely redesigned it from the ground up. All-new reflector geometry, all-new LEDs and all-new housing. We’ve increased the depth of the optics by 35% allowing for a perfectly collimated beam and the resultant increase in light intensity. The beam diameter strikes a sublime balance between width and throw and will send light right out to 1,050m. Four dedicated built-in wide-beam optics disperse light in the nearfield, and transition beautifully with the spot beam.

STEDI DESIGN LANGUAGE

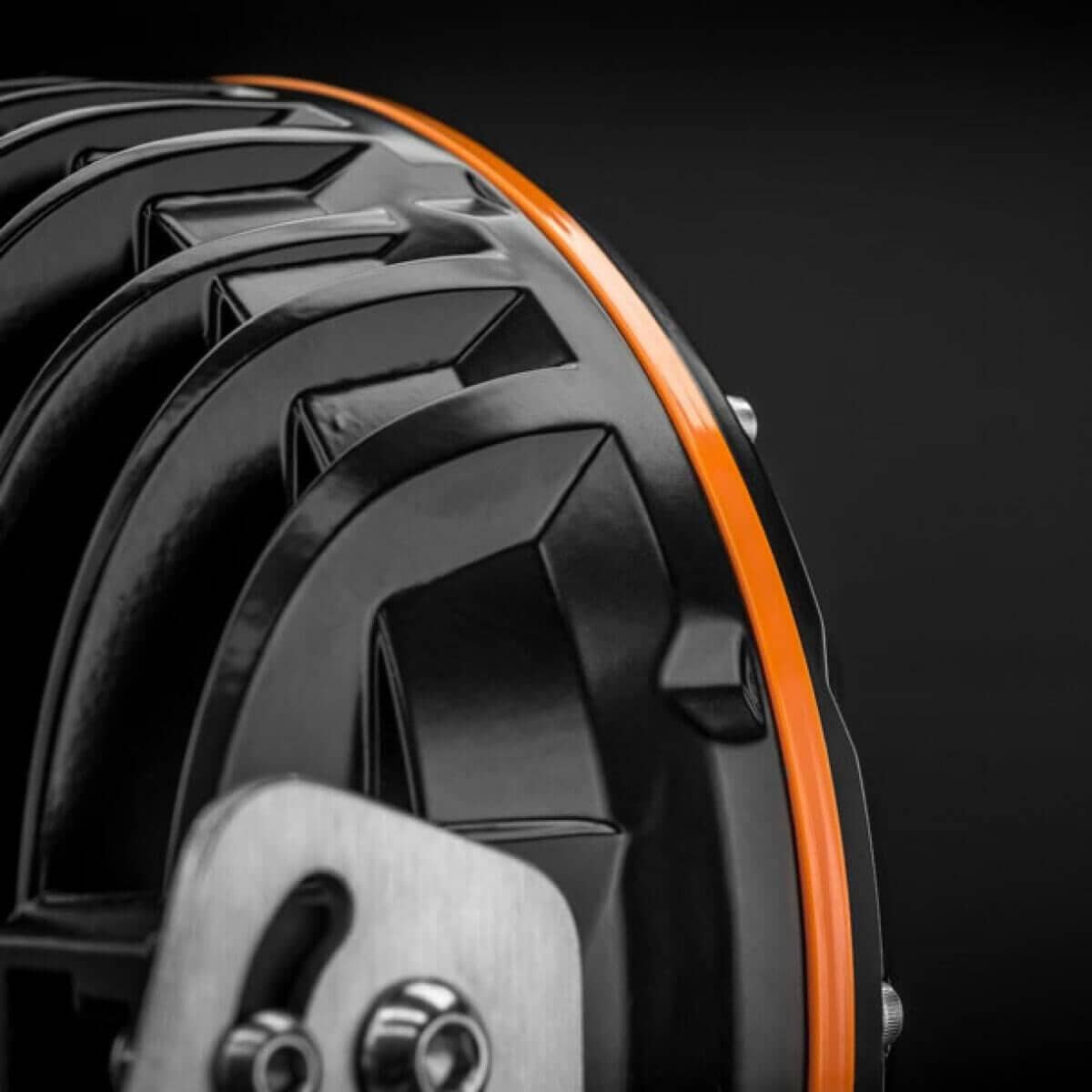

Some people call it the little things; for us, it is literally everything. We obsessed over even the most trivial geometries and design elements to achieve a visually stunning luminaire. The 4mm 304 Stainless steel bracket features our signature shoulder armor with laser-cut STEDI branding. A carefully considered orange rim surrounding the housing offers just the right amount of visual impact while ensuring that the overall look and feel plays nice equally on a Sandy Taupe Landcruiser as it will on Magnetic Grey Ranger.

ENTER THE WORLD OF STEDI

The internet is littered with mediocre lights. 98% of driving lights offered in the marketplace are off the shelf imports with the reseller’s laser logo and subsequent price mark-up. Don’t even get us started on the fictitious performance claims. When you enter the world of STEDI, you’re buying into a product which is mechanically and optically engineered with our know-how and our tooling, with our reputation and warranty standing right behind it. Our lights won’t fade, turn yellow and fall-off at the first sign of corrugations. Our photometric data is lab tested, not photoshopped – We stand by it.

DETAILS

THE NERDY DETAILS

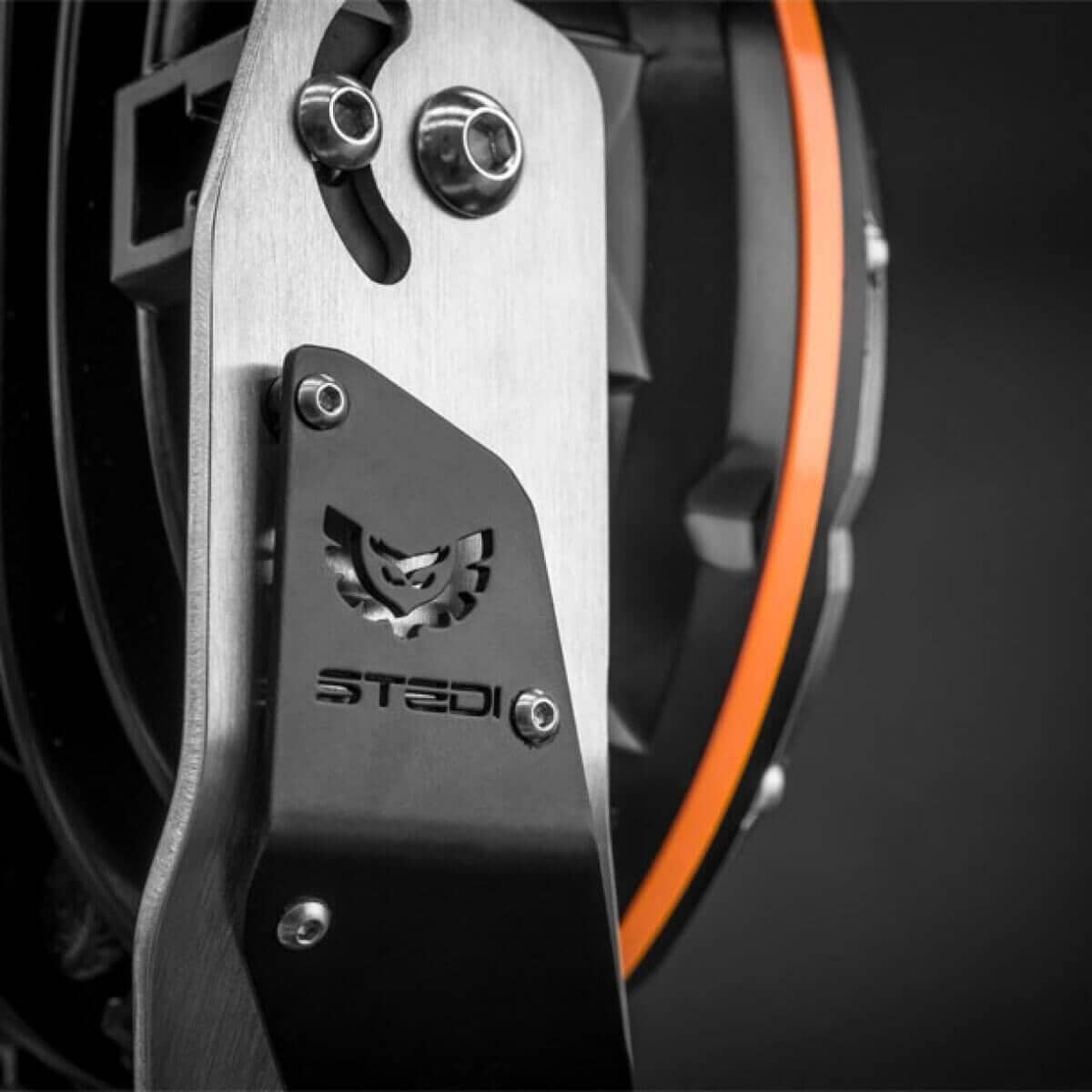

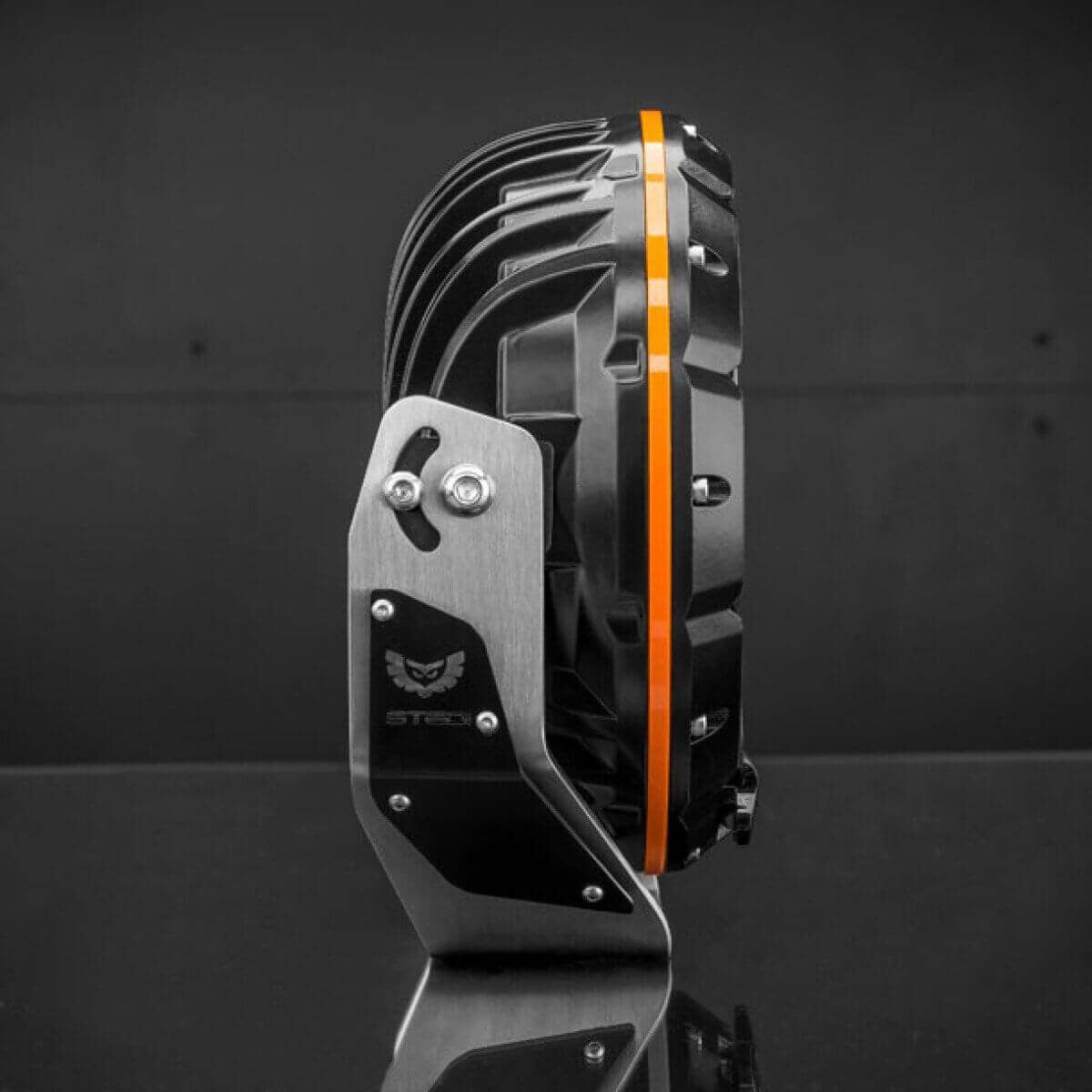

  • 4mm thick 304 Series Stainless Mounting bracket, which includes rubber dampener and an additional 3mm upper plate.

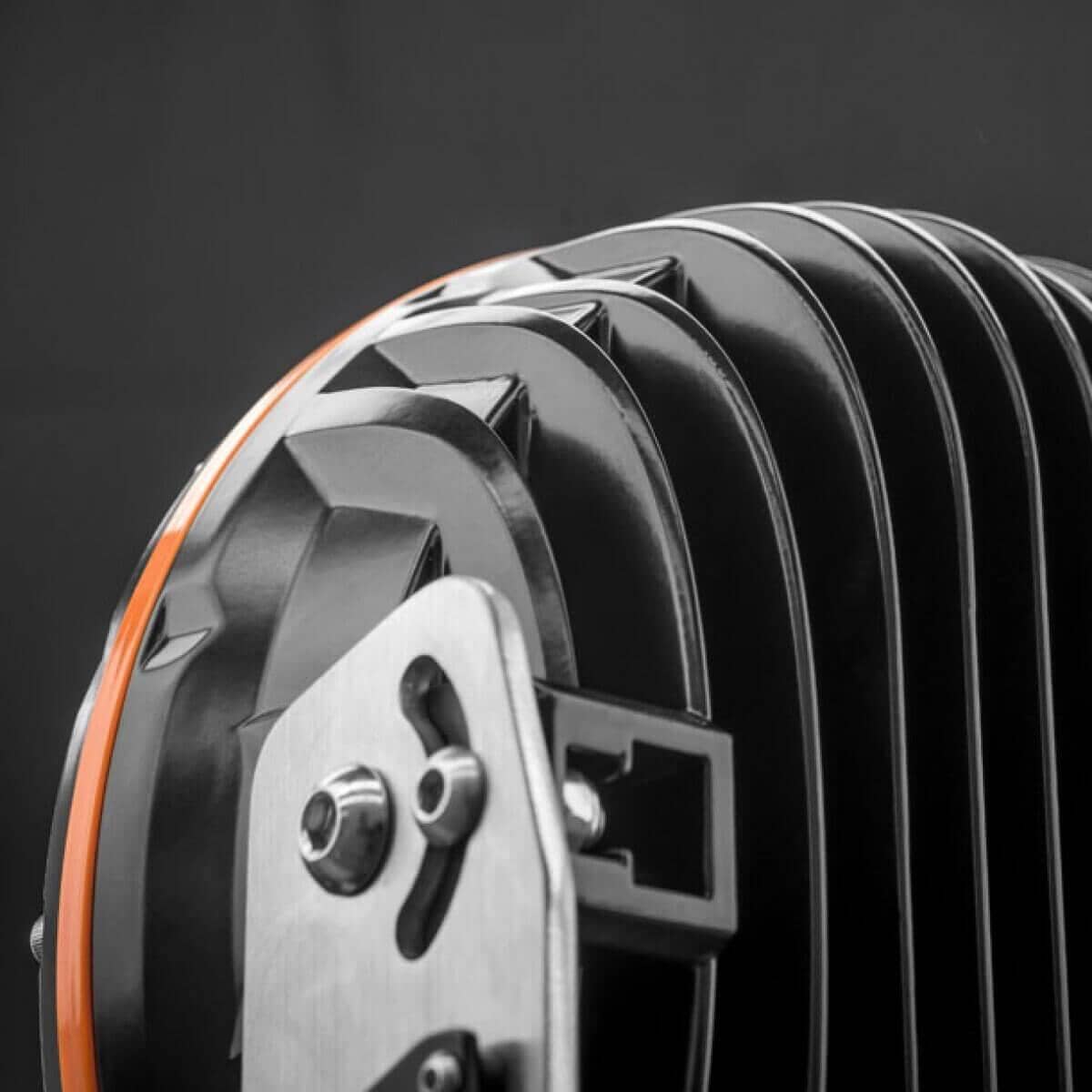

  • A360.0 Cast Housing | Boasting superior strength and corrosion resistance.
  • 3mm Thick GE Lexan Lens with hard coating | Virtually unbreakable & scratch resistant
  • 100% Polyester UV and abrasion resistant powder coat
  • IP68 | Dust & Particle tight + Water-proof up to 3 meters

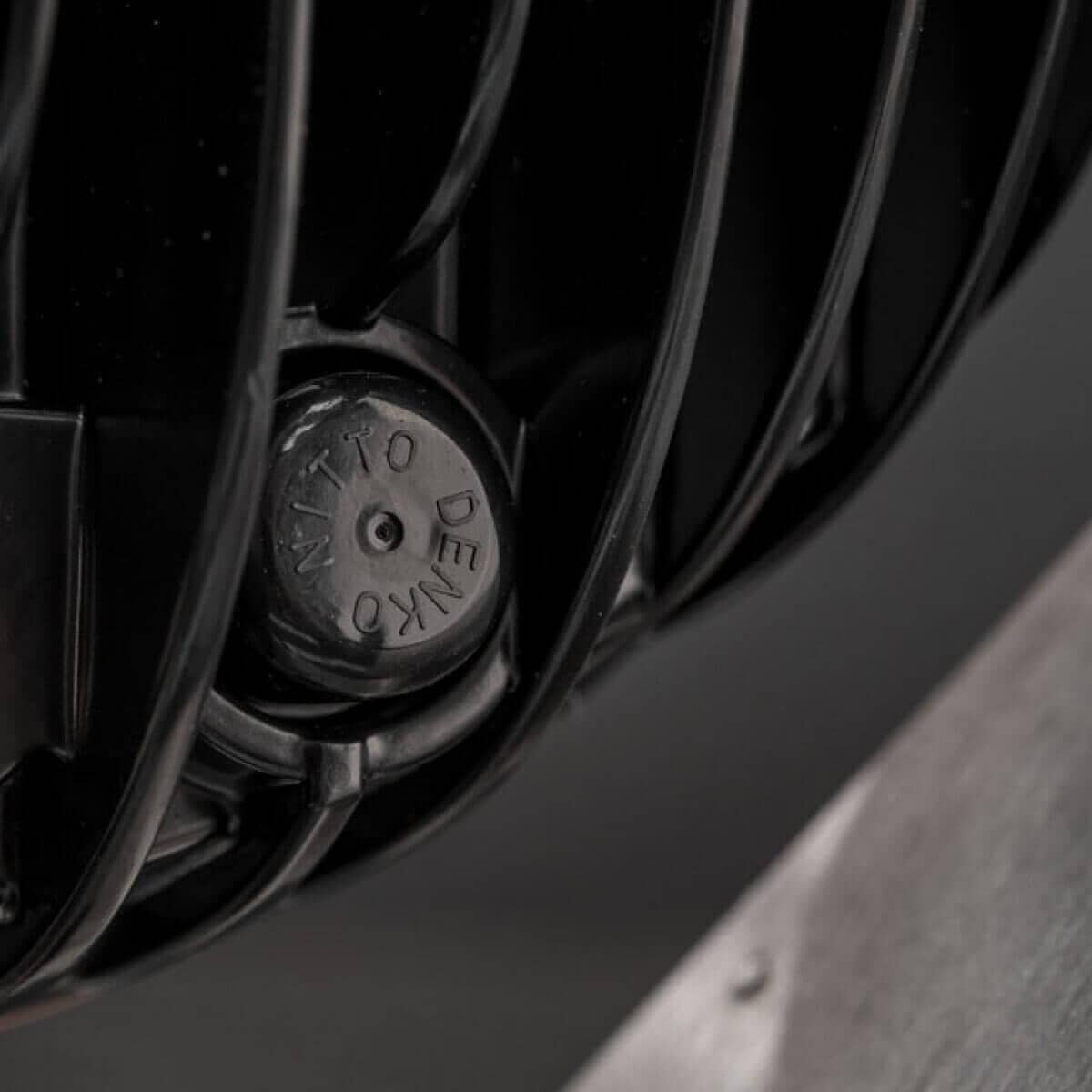

  • Nitto Denko Pressure Equalization vent with membrane | Protects against water ingress, dust & contaminants.
  • Environmentally Sealed Deutsch® DTP-2 connector
  • EMI & RFI Suppression circuitry – We guarantee it.
  • Each TYPE-X Sport comprises 36 of OSRAM’s® finest OSLON® LED, selected for its high luminous flux and perfectly matches optical properties.
  • Four wide-beam reflectors built-in, which form a lateral shaped flood pattern designed to minimize valuable light wasted up to the sky. Also available separately are the snap-on wide-beam covers, for environments demanding an increased peripheral vision.
  • 5700K CCT offers stunning clarity and definition with excellent Colour Rendering Index (CRI)

SPECIFICATIONS

LED 36 x Osram Oslon SSL
RAW LUMENS 20,780 (Pair)
TESTED LUMENS 14,950 (Pair)
AMP DRAW 9.8A @ 13.2v (each)
POWER DRAW 129W
CANDELA
1,102,500cd
BEAM PATTERN 4 x Spread 32 x Spot Beam
INGRESS PROTECTION IP68 | Submersible up to 3m
COLOUR TEMP (CCT) 5700K
VOLTAGE COMPATIBILITY 12v & 24v
LUMEN MAINTENANCE 50,000 LM-80
WEIGHT 3.35kg (each)
PHOTOMETRIC DATA
10 M 11,025 Lx
50 M 441 Lx
200 M 27 Lx
300 M 12 Lx
400 M 6 Lx
1,000 M 1.1 Lx
1,050 M 1 Lx

WHAT'S INCLUDED

  • 2 x STEDI TYPE-X Sport

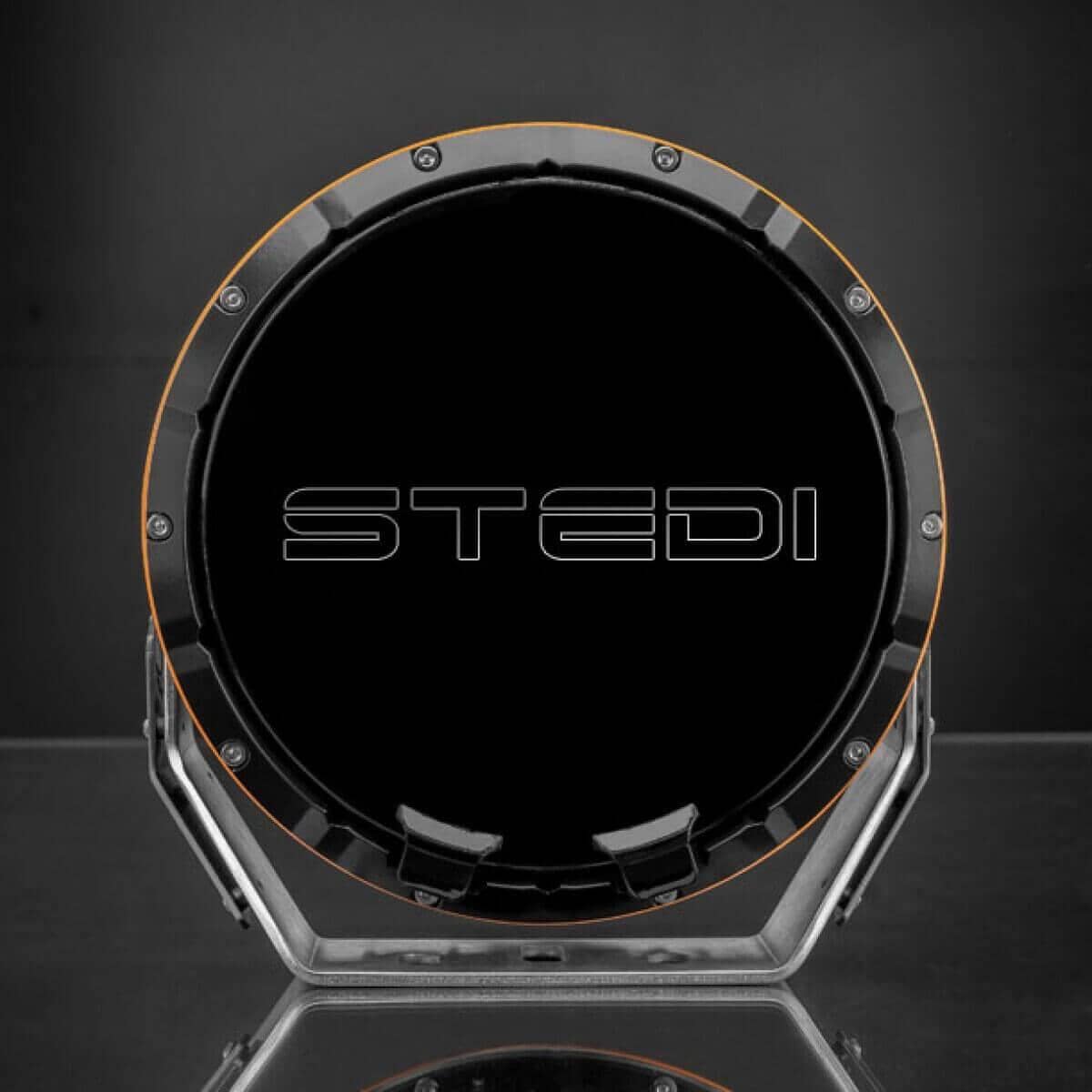

  • 2 x STEDI Black Out Covers
  • 1 x Easy Fit High Beam Wiring with DTP-2 Sealed Connectors, H4, HB3 Adapter plugs to high beam. 60A Relay, Fuse, Switch
  • 3 Series Stainless Steel Nuts and Bolts
  • Rubber Shock Dampener
  • Wiring Instructions

⚠️ Important Information: You are responsible for LVV compliance of purchased products and their installation, if applicable. Images are for illustration only, actual product may vary. Please contact us with any questions.
