STEDI VW Amarok Lower Grille 31.5 Inch Light Bar Bundle

AMAROK READY.

We’ve curated the perfect LED Light Bar fitment kit for your VW Amarok. Combined with the 31.5 Inch Amarok Lower Grill Mounting Bracket and the VW Amarok Headlight PiggyBack Adaptor, the ST3K 31.5 Inch 30 LED Slim LED Light Bar is the perfect enhancement for your VW Amarok. We’ve got you covered with the complete essentials.

BRILLIANCE IS THE NAME OF THE GAME.

The ST3K range is easily comparable to the STEDI Type-X and ST4k range. With a strong penetrating beam of 601m at 1 LUX, the ST3K 31.5 Inch is the perfect all-rounder!

PLUG AND PLAY.

The accompanying VW Amarok Headlight PiggyBack Adaptor offers a convenient plug and play solution for wiring up your ST3K 31.5 Inch 30 LED Slim LED Light Bar to your Amarok. No need for splicing, tapping or soldering!

THE NITTY

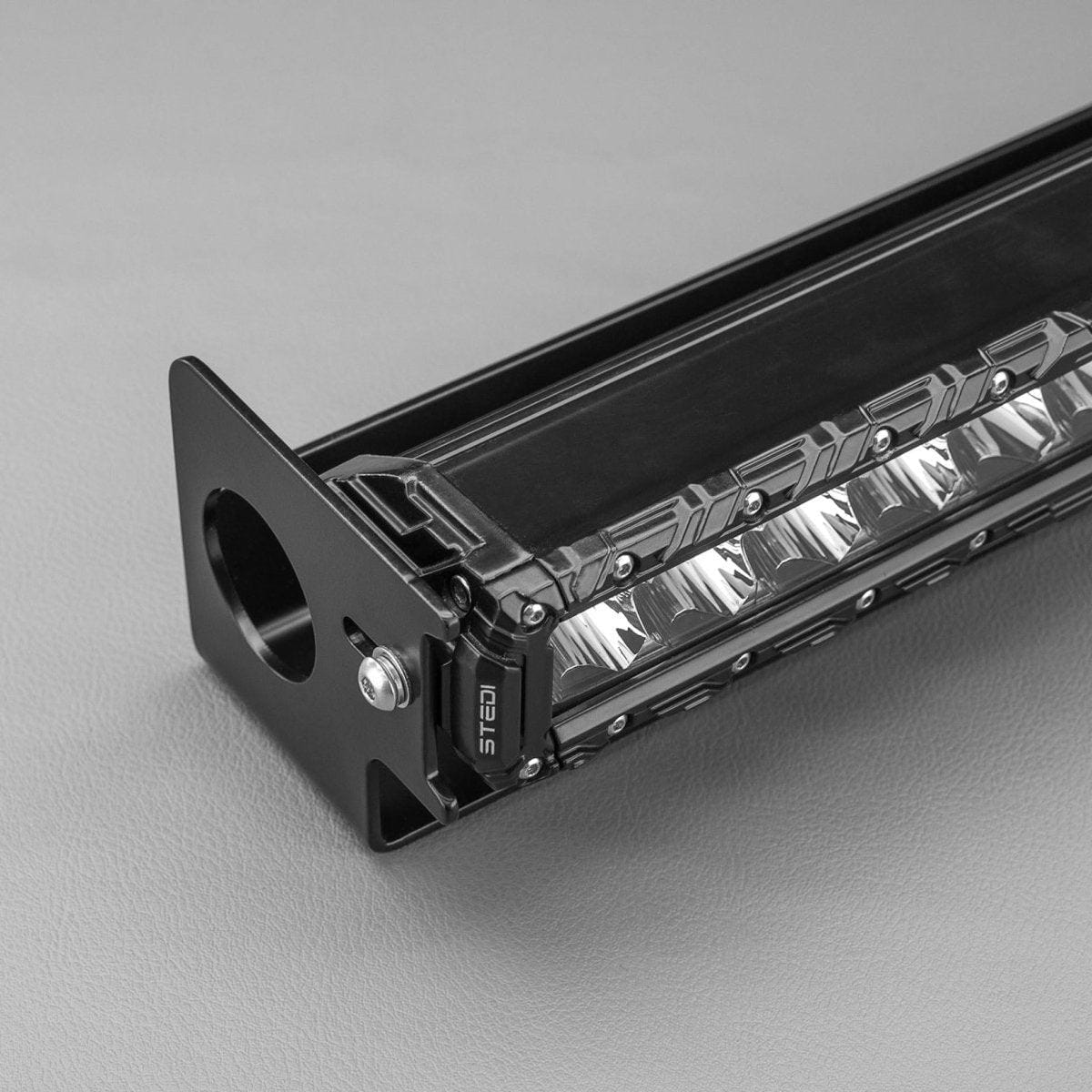

GRITTY.ST3K 31.5 inch 30 LED Slim LED Light Bar.

MARKET LEADING PERFORMANCE.

ST3K-30L features 30 of OSRAM’s® finest OSLON® LED, selected for unrivalled efficiency.

6 Flood + 18 Spot + 6 Flood reflector distribution forms a remarkable beam that pushes the wide beam out at 50° and spot beam at 5.8° all the way to staggering 1 lux @ 601m

True White 5700K Colour temperature offers stunning clarity and definition.

Our Pure-Drive™ circuit design allows 97% of input power to go directly to LEDs.

BUILT TO WITHSTAND THE RELENTLESS PUNISHMENT OF THE DEEP AUSTRALIAN OUTBACK.

Finished in 100% Polyester UV and abrasion resistant powder coat ensures that our bars will never discolour.

Pressure Equalization vent | Protects against water ingress, dust & contaminants.

IP68 | Dust & Particle tight + Water-proof up to 3 meters!

Environmentally sealed Deutsch DT-2 connector.

Protected against EMC and RFI.

Includes our Easy-Fit High Beam Plug and Play Wiring Harness which includes H4 and HB3 Adapters making for an easy connection to high beam. Unlike the copycat harnesses on the market, ours has built-in electronics making our harness compatible with even the most modern and sophisticated wiring systems

Backed by a 5 Year Replacement Warranty.

VW Amarok Lower Grill Light Bar Mounting Bracket 31.5 Inch.

• Suits our ST3K-31.5" LED Light Bars.
• Black Powder Coated Finish
• 3 Series Stainless Steel
• Designed to minimise disruption of air-flow
• No need to remove front bumper
• Bolts to existing factory bumpr supports to pre-existing holes
• No drilling required, bolt and nut kit included
  Please note: Some 2019 onwards models may not have the factory pre-drilled holes in the impact beam, you may need to drill these yourself.
• Does not suit Walkinshaw W580 models

VW Amarok Headlight Piggy Back Adaptor.

Specifically designed to suit the Volkswagen Amarok (All Models).

The easy solution for wiring up your Driving Lights with no need for splicing, tapping or soldering as it is a direct Plug & Play install.

Designed to work with all STEDI Quick Fit Wiring Harnesses.

TECH SPECS

ST3K 31.5 inch 30 LED Slim LED Light BarLED30 x Osram Oslon WhiteEffective Lumen6,150LmPeak Intensity (Candela)364,800cdOperating Voltage10-30V DCIP RatingIP68Current Draw6.5A @ 13.6vColour Temperature (CCT)5700 KelvinHousing MaterialAluminium Extrusion & CastLensGE™ LexanMounting BracketPowder Coated 3mm Stainless SteelBolts and FIttings3 Series Stainless SteelBeam TypeFlood Spot ComboLife Span50,000 HoursWeight2.640Operating Environment-40 to +50° CelsiusPHOTOMETRIC DATA10 M3,612 LX50 M144 Lx100 M36 Lx200 M9 Lx601 M1 Lx

_______________________________________

VW Amarok Lower Grill Light Bar Mounting BracketMaterial3 series Stainless SteelFinishPowder Coat

_______________________________________

Volkswagon Amarok Headlight Piggy Back AdaptorConnector Type:10 PinFits Volkswagen Amarok:All Models

WHAT'S INCLUDED

• ST3K 31.5inch LED LIGHT BAR
• Stainless Fasteners
• Stainless Steel Side Mounting Brackets
• 12v Quick Fit to High Beam Wiring, Relay, Wiring Kit and round universal On/Off Switch
• H4 and HB3 adapters included
• Wiring Instructions
• 1 x Amarok 31.5 Inch Lower Grill Light Bar Mount (with 4x Nuts and Bolts)
• 1 x Volkswagen Amarok High beam Adapter
